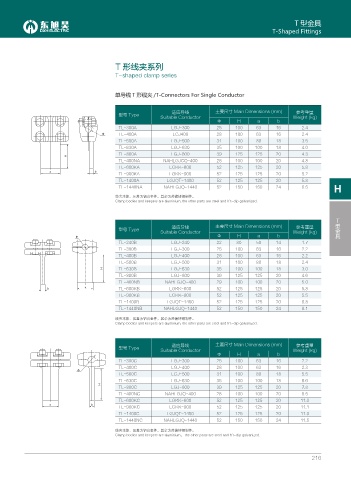

T 型金具
T-Shaped Fittings

T 形线夹系列

T-shaped clamp series

单导线 T 形线夹 /T-Connectors For Single Conductor

适应导线 主要尺寸 Main Dimensions (mm) 参考重量
型号 Type
Suitable Conductor Weight (kg)
Φ H a b
TL-300A LGJ-300 25 100 63 16 2.4
 TL-400A LGJ400 28 100 63 16 2.4
TL-500A LGJ-500 31 100 80 18 3.5
TL-630A LGJ-630 35 100 100 18 4.0
TL-800A LGJ-800 39 125 125 20 4.3
*
TL-400NA NAHLGJCQ-400 28 100 100 20 4.8
TL-600KA LGKK-600 52 125 125 20 5.8
C D
TL-900KA LGKK-900 52 125 125 20 5.2
TL-1400A LGJQT-1400 52 125 125 20 5.8
H
TL-1440NA NAHLGJQ-1440 52 150 150 24 6.5
线夹本体、压盖为铝合金件，其余为热镀锌钢制件。
Clamp bodies and keepers are aluminium, the other parts are steel and h^t-dip galvanized.

T
适应导线 主要尺寸 Main Dimensions (mm) 参考重量 型
型号 Type
Suitable Conductor Weight (kg) 金
 Φ H a b 具
TL-240B LGJ-240 22 80 50 14 1.7
TL-300B LGJ-300 25 100 63 16 2.2
TL-400B LGJ-400 28 100 63 16 2.2
TL-500B LGJ-500 31 100 80 18 2.4
* TL-630B LGJ-630 35 100 100 18 3.0
TL-800B LGJ-800 39 125 125 20 4.6
TL-400NB NAHLGJQ-400 29 100 100 20 5.0
D C TL-600KB LGKK-600 52 125 125 20 5.8
TL-900KB LGKK-900 52 125 125 20 5.5
TL-1400B LGJQT-1400 52 125 125 20 6.8
TL-1440NB NAHLGJQ-1440 52 150 150 24 8.1
线夹本体、压盖为铝合金件，其余为热镀锌钢制件。
Clamp bodies and keepers are aluminium, the other parts are steel and h^t-dip galvanized.

适应导线 主要尺寸 Main Dimensions (mm) 参考重量
型号 Type
Suitable Conductor Weight (kg)
Φ H a b
TL-300C LGJ-300 25 100 63 16 2.2
TL-400C LGJ-400 28 100 63 16 2.3

TL-500C LGJ-500 31 100 80 18 5.5
TL-630C LGJ-630 35 100 100 18 6.6
*
TL-800C LGJ-800 39 125 125 20 7.8
TL-400NC NAHLGJQ-400 28 100 100 20 8.5
TL-600KC LGKK-600 52 125 125 20 11.0
C D
TL-900KC LGKK-900 52 125 125 20 11.1
TL-1400C LGJQT-1400 52 125 125 20 11.0
TL-1440NC NAHLGJQ-1440 52 150 150 24 11.5
线夹本体、压盖为铝合金件，其余为热镀锌钢制件。
Clamp bodies and keepers are aluminium， the other parts are steel and h^t-dip galvanized.
