耐张线夹
Resistant Clip

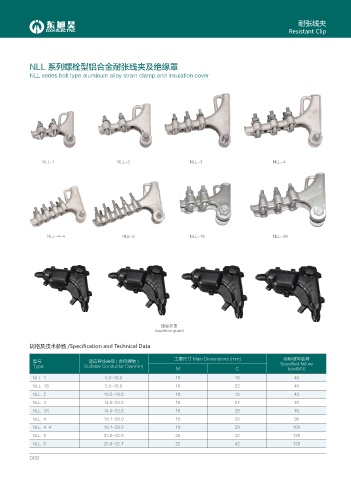

NLL 系列螺栓型铝合金耐张线夹及绝缘罩

NLL series bolt type aluminum alloy strain clamp and insulation cover

NLL-1 NLL-2 NLL-3 NLL-4

NLL-4-4 NLL-5 NLL-1S NLL-3S

绝缘护罩
Insulation guard

规格及技术参数 /Specification and Technical Data

主要尺寸 Main Dimensions (mm) 标称破坏载荷
型号 适应导线直径 ( 含包缠物 )
Type Suitable Conductor Dia(mm) Specified failure
M C load(kN)
NLL-1 5.0~16.0 16 18 40
NLL-1S 5.0~16.0 16 22 40
NLL-2 10.0~18.0 16 18 40
NLL-3 14.0~23.0 16 27 70
NLL-3S 14.0~23.0 16 26 70
NLL-4 18.1~30.0 18 30 90
NLL-4-4 18.1~29.0 18 29 100
NLL-5 23.0~32.0 20 32 120
NLL-6 25.9~32.7 22 42 120
