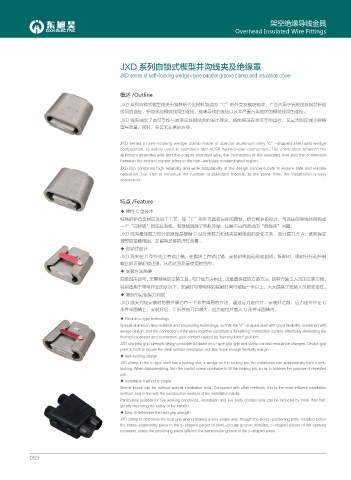

架空绝缘导线金具
Overhead Insulated Wire Fittings

JXD 系列自锁式楔型并沟线夹及绝缘罩

JXD series of self-locking wedge-type parallel groove clamp and insulation cover

概述 /Outline
JXD 系列自锁式楔型线夹由特殊铝合金材料制成的“C”形外壳及楔块构成，广泛应用于铝绞线及钢芯铝绞
线间的连接，铝绞线与铜绞线间的连接，绝缘导线的连接以及非严重污染地区的铜绞线间的连接。
JXD 线夹融合了高可靠性与宽适应性相结合的设计理念，既能保证安全可靠的运行，又最大限度减少规格
型号数量，同时，安装又非常的方便。

JXD series of self-locking wedge clamp made of special aluminum alloy "C" -shaped shell and wedge
composition, is widely used in aluminum and ACSR twisted-pair connection, The connection between the
aluminum stranded wire and the copper stranded wire, the connection of the insulated wire and the connection
between the twisted copper wires in the non-seriously contaminated region.
JXD clip combines high reliability and wide adaptability of the design concept, both to ensure safe and reliable
operation, but also to minimize the number of standard models, at the same time, the installation is very
convenient.

特点 /Feature

◆ 弹性 C 型技术
特殊的铝合金材质及加工工艺，使“C”形外壳具有良好的弹性，结合楔块的设计，与连接的导线共同构成
一个“同呼吸”的连接系统，有效地消除了热胀冷缩、接触不良而造成的“烧线夹”问题。
JXD 线夹最佳握力设计的原理是根据 C 型外壳握力和线夹接触电阻的变化关系。设计握力点 A，既能保证
理想的接触电阻，又留有足够的弹性余量。
◆ 自锁式设计
JXD 线夹在 C 型外壳上有锁止槽，在楔块上有锁止销，安装时能自动形成自锁。拆卸时，顺时针拧动控制
螺丝即可提起锁止销，从而达到反复使用的目的。
◆ 安装方法简便
简单敲击即可，无需特殊的安装工具。与其他方法相比，这是最快捷的安装方法，且符合施工人员的安装习惯。
特别适用于带电作业的状况下，安装时与带电体的接触时间可缩短一半以上，大大提高了安装人员的安全性。
◆ 简易的最佳握力判定
JXD 线夹判定安装时的最佳握力有一个非常简易的方法：通过应力定位片，安装好之前，应力定位片在 C
形件半圆槽上；安装好后，C 形件的开口增大，应力定位片落入 C 形件半圆槽内。
◆ Flexible c-type technology
Special aluminum alloy material and processing technology, so that the "c" -shaped shell with good flexibility, combined with
wedge design, and the connection of the wires together constitute a "breathing" connection system, effectively eliminating the
thermal expansion and contraction, poor contact caused by "burning folder" problem.
JXD clip best grip strength design principle is based on c-type grip grip and clamp contact resistance changes. Design grip
point a, both to ensure the ideal contact resistance, but also leave enough flexibility margin.
◆ Self-locking design
JXD clamp in the c-type shell has a locking slot, a wedge on the locking pin, the installation can automatically form a self-
locking. When disassembling, turn the control screw clockwise to lift the locking pin, so as to achieve the purpose of repeated
use.
◆ Installation method is simple
Simple knock can be, without special installation tools. Compared with other methods, this is the most efficient installation
method, and in line with the construction workers of the installation habits.
Particularly suitable for live working conditions, installation and live body contact time can be reduced by more than half,
greatly improving the safety of the installer.
◆ Easy to determine the best grip strength
JXD clamp to determine the best grip when installing a very simple way: through the stress-positioning plate, installed before
the stress-positioning piece in the c-shaped pieces of semi-circular groove; installed, c-shaped pieces of the opening
increases, stress the positioning piece falls into the semicircular groove of the c-shaped piece.
