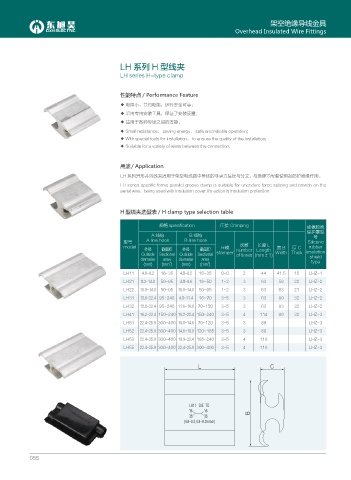

架空绝缘导线金具
Overhead Insulated Wire Fittings

LH 系列 H 型线夹

LH series H-type clamp

性能特点 / Performance Feature
◆ 电阻小，节约电能，运行安全可靠；
◆ 采用专用安装工具，保证了安装质量；
◆ 适用于各种导线之间的连接。
◆ Small resistance， saving energy， safe and reliable operation;
◆ With special tools for installation， to ensure the quality of the installation;
◆ Suitable for a variety of wires between the connection.

用途/ Application
LH 系列异形并沟线夹适用于架空电线路中导线的非承力接续与分支，与绝缘罩配套使用起防护绝缘作用。
LH series specific forms parallel groove clamp is suitable for unendure force splicing and branch on the
aerial wire，being used with insulation cover.It's action is insulation protection

H 型线夹选型表 / H clamp type selection table

规格 specification 压接 Crimping 硅橡胶绝
缘护罩型
A 线钩 B 线钩 号
型号 A line hook B line hook Silicone
model 压模 次数 长度 L 宽B 厚C rubber
外径 截面积 外径 截面积 number Length insulation
Outside Sectional Outside Sectional stamper of times (mm±1) Width Thick
diameter area diameter area shield
type
(mm) (mm ) 2 (mm) (mm ) 2
LH11 4.8~8.2 16~35 4.8~8.2 16~35 0-0 2 44 41.5 15 LHZ-1
LH21 8.3~14.0 50~95 4.8~9.6 16~50 1-2 3 63 58 22 LHZ-2
LH22 10.0~14.0 50~95 10.0~14.0 50~95 1-2 3 63 63 21 LHZ-2
LH31 13.0~22.4 95~240 4.8~11.4 16~70 3-5 3 63 80 32 LHZ-2
LH32 13.0~22.4 95~240 11.6~16.0 70~150 3-5 3 63 83 32 LHZ-2
LH41 16.2~22.4 150~240 16.2~22.4 150~240 3-5 4 114 90 32 LHZ-3
LH51 22.4~25.9 300~400 10.0~14.5 70~120 3-5 3 89 LHZ-3
LH52 22.4~25.9 300~400 14.6~18.0 120~185 3-5 3 89 LHZ-3
LH53 22.4~25.9 300~400 18.9~22.4 185~240 3-5 4 118 LHZ-3
LH55 22.4~25.9 300~400 22.4~25.9 300~400 3-5 4 118 LHZ-3

- $
