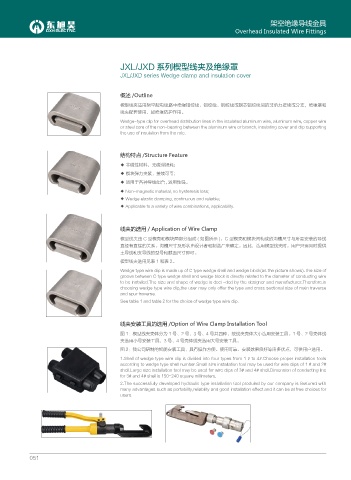

Page 70 - 四川东旭昊电气设备有限公司

架空绝缘导线金具
Overhead Insulated Wire Fittings

JXL/JXD 系列楔型线夹及绝缘罩

JXL/JXD series Wedge clamp and insulation cover

概述 /Outline
楔型线夹适用架空配电线路中绝缘铝绞线、铝绞线、铜绞线或钢芯铝绞线间的非承力接续或分支，绝缘罩和
线夹配套使用，起绝缘防护作用。
Wedge-type clip for overhead distribution lines in the insulated aluminum wire, aluminum wire, copper wire
or steel core of the non-bearing between the aluminum wire or branch, insulating cover and clip supporting
the use of insulation from the role.

结构特点 /Structure Feature

◆ 非磁性材料，无磁滞损耗；
◆ 楔块弹力夹紧，接续可靠；
◆ 适用于各种导线组合，适用性强。
◆ Non-magnetic material, no hysteresis loss;
◆ Wedge elastic clamping, continuous and reliable;
◆ Applicable to a variety of wire combinations, applicability.

线夹的选用 / Application of Wire Clamp

楔型线夹由 C 型楔壳和楔块两部分组成 ( 如图所示 )，C 型楔壳和楔块间构成的沟槽尺寸与所要安装的导线
直径有直接的关系。沟槽尺寸及形状由设计者和制造厂来确定。因此，选用楔型线夹时，用户只需同时提供
主导线和支导线的型号和截面尺寸即可。
楔型线夹选用见表 1 和表 2。
Wedge type wire clip is made up of C type wedge shell and wedge block(as the picture shows).The size of
groove between C type wedge shell and wedge block is directly related to the diameter of conducting wire
to be installed.The size and shape of wedge is deci -ded by the designer and manufacturer.Therefore.in
choosing wedge type wire clip,the user may only offer the type and cross sectional size of main traverse
and spur traverse.
See table 1 and table 2 for the choice of wedge type wire clip.

线夹安装工具的选用 /Option of Wire Clamp Installation Tool
图 1：楔型线夹壳体分为 1 号、2 号、3 号、4 号共四种，按线夹壳体大小选用安装工具。1 号、2 号壳体线
夹选用小号安装工具，3 号、4 号壳体线夹选用大号安装工具。
图 2：我公司研制的智能安装工具，具有操作方便、使用可靠、安装效果良好等诸多优点，可供用户选用。
1.Shell of wedge type wire clip is divided into four types from 1 # to 4#.Choose proper installation tools
according to wedge type shell number.Small size installation tool may be used for wire clips of 1 # and 2#
shell.Large size installation tool may be used for wire clips of 3# and 4# shell.Dimension of conducting line
for 3# and 4# shell is 150-240 square millimeters.
2.The successfully developed hydraulic type installation tool produled by our company is featured with
many advantages such as portability,reliability and good installation effect and it can be at free choices for
users.
