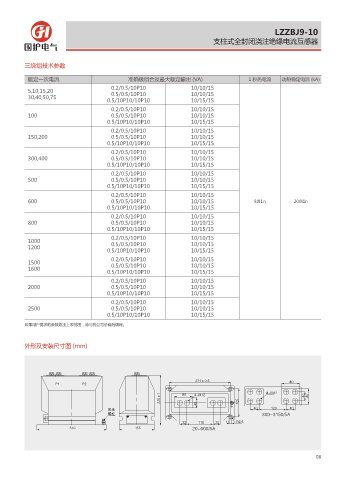

LZZBJ9-10
支柱式全封闭浇注绝缘电流互感器

三绕组技术参数

额定一次电流 准确级组合及最大额定输出 (VA) 1 秒热电流 动热稳定电流 (kA)
0.2/0.5/10P10 10/10/15
5,10,15,20 0.5/0.5/10P10 10/10/15
30,40,50,75
0.5/10P10/10P10 10/15/15
0.2/0.5/10P10 10/10/15
100 0.5/0.5/10P10 10/10/15
0.5/10P10/10P10 10/15/15
0.2/0.5/10P10 10/10/15
150,200 0.5/0.5/10P10 10/10/15
0.5/10P10/10P10 10/15/15
0.2/0.5/10P10 10/10/15
300,400 0.5/0.5/10P10 10/10/15
0.5/10P10/10P10 10/15/15
0.2/0.5/10P10 10/10/15
500 0.5/0.5/10P10 10/10/15
0.5/10P10/10P10 10/15/15
0.2/0.5/10P10 10/10/15
600 0.5/0.5/10P10 10/10/15 80I1n 200I1n
0.5/10P10/10P10 10/15/15
0.2/0.5/10P10 10/10/15
800 0.5/0.5/10P10 10/10/15
0.5/10P10/10P10 10/15/15
0.2/0.5/10P10 10/10/15
1000 0.5/0.5/10P10 10/10/15
1200
0.5/10P10/10P10 10/15/15
0.2/0.5/10P10 10/10/15
1500
1600 0.5/0.5/10P10 10/10/15
0.5/10P10/10P10 10/15/15
0.2/0.5/10P10 10/10/15
2000 0.5/0.5/10P10 10/10/15
0.5/10P10/10P10 10/15/15
0.2/0.5/10P10 10/10/15
2500 0.5/0.5/10P10 10/10/15
0.5/10P10/10P10 10/15/15
如果用户要求的参数超出上表范围，请与我公司协商后确定。

外形及安装尺寸图 (mm)

d
1 1
.
.
d

ᣑ౜
㳦ᴿ "
3
"

08
