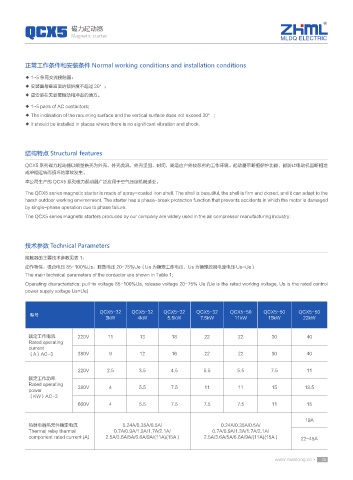

QCX5 磁力起动器
Magnetic starter
MLDQ ELECTRIC

正常工作条件和安装条件 Normal working conditions and installation conditions

◆ 1~5 条同交流接触器；
◆ 安装面与垂直面的倾斜度不超过 30°；
◆ 应安装在无显著振动和冲击的地方。
◆ 1~5 pairs of AC contactors;
◆ The inclination of the mounting surface and the vertical surface does not exceed 30° ;
◆ It should be installed in places where there is no significant vibration and shock.

结构特点 Structural features

QCX5 系列磁力起动器以喷塑铁壳为外壳，外壳美观，外壳坚固，封闭，能适应户外较恶劣的工作环境。起动器带断相保护功能，能防止电动机因断相造
成单相运转而损坏的事故发生。
本公司生产的 QCX5 系列磁力起动器广泛应用于空气压综机制造业。
The QCX5 series magnetic starter is made of spray-coated iron shell. The shell is beautiful, the shell is firm and closed, and it can adapt to the
harsh outdoor working environment. The starter has a phase-break protection function that prevents accidents in which the motor is damaged
by single-phase operation due to phase failure.
The QCX5 series magnetic starters produced by our company are widely used in the air compressor manufacturing industry.

技术参数 Technical Parameters

接触器的主要技术参数见表 1；
动作特性：吸合电压 85-100%Us，释放电压 20-75%Ue（Ue 为额定工作电压，Us 为额定控制电源电压 Us=Ue）
The main technical parameters of the contactor are shown in Table 1;
Operating characteristics: pull-in voltage 85-100%Us, release voltage 20-75% Ue (Ue is the rated working voltage, Us is the rated control
power supply voltage Us=Ue)

QCX5-32 QCX5-32 QCX5-32 QCX5-32 QCX5-50 QCX5-50 QCX5-50
型号
3kW 4kW 5.5kW 7.5kW 11kW 15kW 22kW

额定工作电流 220V 11 13 18 22 22 30 40
Rated operating
current
（A）AC-3 380V 9 12 16 22 22 30 40

220V 2.5 3.5 4.5 5.5 5.5 7.5 11
额定工作功率
Rated operating 380V 4 5.5 7.5 11 11 15 18.5
power
（KW）AC-3
660V 4 5.5 7.5 7.5 7.5 11 15

19A
热继电器热元件额定电流 0.24A/0.35A/0.5A/ 0.24A/0.35A/0.5A/
Thermal relay thermal 0.7A/0.9A/1.3A/1.7A/2.1A/ 0.7A/0.9A/1.3A/1.7A/2.1A/
component rated current (A) 2.5A/3.6A/5A/6.6A/9A/(11A)(15A ) 2.5A/3.6A/5A/6.6A/9A/(11A)(15A ) 22~45A
