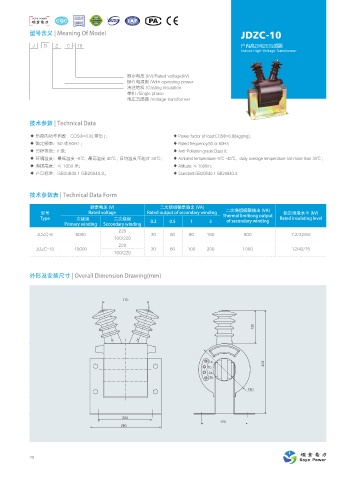

型号含义 | Meaning Of Model                                                  JDZC-10

            J   D   Z   C  - 10                                                     户内高压电压互感器
                                                                                    Indoor High-Voltage Transformer




                                             额定电压 (kV)/Rated voltage(kV)
                                             操作电源用 /With operating power
                                             浇注绝缘 /Casting insulation
                                             单相 /Single phase
                                             电压互感器 /Voltage transformer



           技术参数 | Technical Data

           ◆ 负荷的功率因数:COSΦ=0.8( 滞后 );                         ◆ Power factor of load:COSΦ=0.8(lagging);
           ◆ 额定频率:50 或 60Hz ;                                ◆ Rated frequency:50 or 60Hz;
           ◆ 污秽等级:II 级;                                      ◆ Anti-Pollution grade:Class II;
           ◆ 环境温度:最低温度 -5℃ , 最高温度 40℃ , 日均温度不超过 30℃;         ◆ Ambient temperature:-5℃ -40℃,daily average temperature not more than 30℃ ;
           ◆ 海拔高度:≤ 1000 米;                                  ◆ Altitude: ≤ 1000m;
           ◆ 产品标准:GB20840.1 GB20840.3。                       ◆ Standard:GB20840.1 GB20840.3.


           技术参数表 | Technical Data Form

                                额定电压 (V)                二次绕组额定输出 (VA)
                                                                               二次绕组极限输出 (VA)
               型号              Rated voltage        Rated output of secondary winding  Thermal limitiong output   额定绝缘水平 (kV)
               Type       —次绕组          二次绕组                                   of secondary winding  Rated insulating level
                       Primary winding   Secondary winding  0.2  0.5  1  3
                                          220
              JDZC-6       6000                      30    50     80    150          800             7.2/32/60
                                        100/220
                                          220
             JDZC-10       10000                     30    50     100   200          1000            12/42/75
                                        100/220


           外形及安装尺寸 | Overall Dimension Drawing(mm)











                                       "        #


                                                                          B
                                                                         C
                                                                          B
                                                                          C
