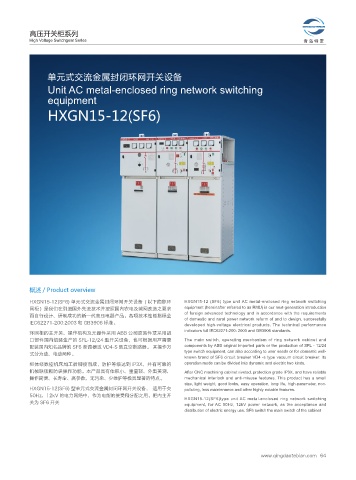

高压开关柜系列
High Voltage Switchgear Series 青 岛 特 变
单元式交流金属封闭环网开关设备
Unit AC metal-enclosed ring network switching
equipment
HXGN15-12(SF6)
概述 / Product overview
HXGN15-12(SF6) 单元式交流金属封闭环网开关设备 ( 以下简称环 HXGN15-12 (SF6) type unit AC metal-enclosed ring network switching
网柜 ) 是我们在引进国外先进技术并按照国内农电及城网改造之要求 equipment (hereinafter referred to as RMU) is our next-generation introduction
而自行设计、研制成功的新一代高压电器产品。各项技术性能指标全 of foreign advanced technology and in accordance with the requirements
of domestic and rural power network reform of and to design, successfully
IEC62271-200:2003 和 GB3906 标准。 developed high-voltage electrical products. The technical performance
环网柜的主开关、操作机构及元器件采用 ABB 公司原装件或采用进 indicators full IEC62271-200: 2003 and GB3906 standards.
口部件国内组装生产的 SFL-12/24 型开关设备，也可根据用户需要 The main switch, operating mechanism of ring network cabinet and
配装国内知名品牌的 SF6 断路器或 VD4-S 型真空断路器。 其操作方 components by ABB original imported parts or the production of SFL - 12/24
式分为动、电动两种。 type switch equipment, can also according to user needs or for domestic well-
known brand of SF6 circuit breaker VD4 -s type vacuum circuit breaker. Its
柜体经数控机床加工后铆接而成，防护等级达到 IP3X，并有可靠的 operation mode can be divided into dynamic and electric two kinds.
机械联锁和防误操作功能。本产品具有体积小、重量轻、外型美观、 After CNC machining cabinet riveted, protection grade IP3X, and have reliable
操作简便、长寿命、高参数、无污染、少维护等极具显著的特点。 mechanical interlock and anti-misuse features. This product has a small
size, light weight, good looks, easy operation, long life, high-parameter, non-
HXGN15-12(SF6) 型单元式交流金属封闭环网开关设备， 适用于交 polluting, less maintenance and other highly notable features.
50Hz、12kV 的电力网络中，作为电能的接受和分配之用。柜内主开 HXGN15-12(SF6)type unit AC metal-enclosed ring network switching
关为 SF6 开关 equipment, for AC 50Hz, 12kV power network, as the acceptance and
distribution of electric energy use. SF6 switch the main switch of the cabinet
