高压开关柜系列
High Voltage Switchgear Series

结构特点 /Structural features
开关设备结构见下图。全金属模块化组装式结构，柜体采用防腐蚀能 Switching the device structure shown below. Full Metal modular assembly
力强的进口敷铝锌板制造，无需表面处理，经 CNC 高精度设备加工， structure, enclosure with anti-corrosion ability of imported aluminum zinc plate
采用先进的多重折边工艺，连接用拉铆螺母、高强度螺栓连接，精度高、 manufacture, without surface treatment, the high-precision CNC machining
equipment, using advanced multi-fold process, connecting rivet nuts, high-
重量轻、强度好。 strength bolt connection, high precision, light weight, high strength.
开关设备可配装本公司生产的 VS1 系列、VD4 系列、ZN65 系列等 Switching equipment can be equipped with the Company's production of VS1
真空断路器，适应性广，互换性强。手车设有工作位置，试验位置， series, VD4 series, ZN65 series of vacuum circuit breakers, wide adaptability,
各位置均有定位和显示装置，安全可靠。 strong interchangeability. Used with a working position, test position, each
电缆室可装多达 9 根单芯电缆，设备有可靠的机械、电气联锁装置， position has to locate and display device, safe and reliable.
Cable compartment can hold up to nine single-core cables, the device has a
完全满足“五防”要求。各室设有泄压通道，确保运行人身安全。 reliable mechanical and electrical interlock device, fully meet the "Five Anti"
requirements. Each room has a relief channel, ensure operational safety.

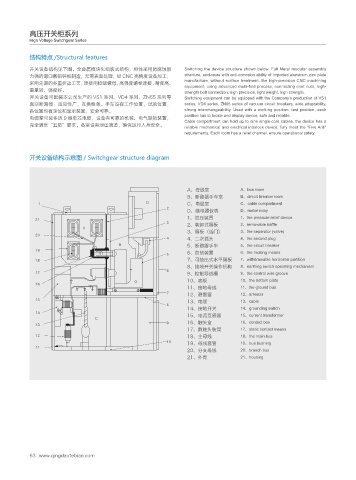

开关设备结构示意图 / Switchgear structure diagram

A、母线室 A、bus room
B、断路器手车室 B、circuit breaker room
% C、电缆室 C、cable compartment

D、继电器仪表 D、meter relay
1、泄压装置 1、the pressure relief device

2、装卸式隔板 2、removable baffle
"
3、隔板（活门） 3、the separator (valve)

4、二次插头 4、the second plug
# 5、断路器手车 5、the circuit breaker

6、加热装置 6、the heating means
7、可抽出式水平隔板 7、withdrawable horizontal partition
8、接地开关操作机构 8、earthing switch operating mechanism

9、控制导线槽 9、the control wire groove
10、底板 10、the bottom plate

11、接地母线 11、the ground bus
12、避雷器 12、arrester
13、电缆 13、cable

14、接地开关 14、grounding switch
15、电流互感器 15、current transformer
$
16、触头盒 16、contact box

17、静触头装置 17、static contact means
18、主母线 18、the main bus
19、母线套管 19、bus bushing

20、分支母线 20、branch bus
21、外壳 21、housing
