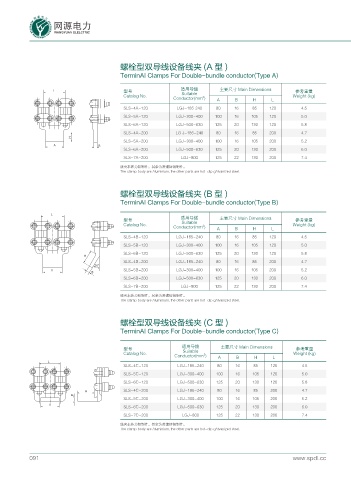

螺栓型双导线设备线夹 (A 型 )

TerminAI Clamps For Double-bundle conductor(Type A)

适用导线 主要尺寸 Main Dimensions
. 型号 参考重量
Catalog No. Suitable 2 Weight (kg)
Conductor(mm ) A B H L
SLS-4A-120 LGJ-185-240 80 16 85 120 4.5
SLS-5A-120 LGJ-300-400 100 16 105 120 5.0
SLS-6A-120 LGJ-500-630 125 20 130 120 5.8
SLS-4A-200 LG J-185-240 80 16 85 200 4.7
*
SLS-5A-200 LGJ-300-400 100 16 105 200 5.2
# $
SLS-6A-200 LGJ-500-630 125 20 130 200 6.0
SLS-7A-200 LGJ-800 125 22 130 200 7.4
线夹本体为铝制件，其余为热镀锌钢制件。
The clamp body are Aluminium, the other parts are hot-dip gAlvanized steel.

螺栓型双导线设备线夹 (B 型 )
TerminAI Clamps For Double-bundle conductor(Type B)

.
型号 适用导线 主要尺寸 Main Dimensions 参考重量
Suitable
Catalog No. 2 Weight (kg)
Conductor(mm ) A B H L
SLS-4B-120 LGJ-185-240 80 16 85 120 4.5
SLS-5B-120 LGJ-300-400 100 16 105 120 5.0
SLS-6B-120 LGJ-500-630 125 20 130 120 5.8
*
SLS-4B-200 LGJ-185-240 80 16 85 200 4.7
d
# SLS-5B-200 LGJ-300-400 100 16 105 200 5.2
$
SLS-6B-200 LGJ-500-630 125 20 130 200 6.0
SLS-7B-200 LGJ-800 125 22 130 200 7.4
线夹本体为铝制件，其余为热镀锌钢制件。
The clamp body are Aluminium, the other parts are hot-dip gAlvanized steel.

螺栓型双导线设备线夹 (C 型 )
TerminAI Clamps For Double-bundle conductor(Type C)

适用导线 主要尺寸 Main Dimensions
型号 Suitable 参考重量
Catalog No. 2 Weight (kg)
Conductor(mm ) A B H L
.
SLS-4C-120 LGJ-185-240 80 16 85 120 4.5
SLS-5C-120 LGJ-300-400 100 16 105 120 5.0
SLS-6C-120 LGJ-500-630 125 20 130 120 5.8
* SLS-4C-200 LGJ-185-240 80 16 85 200 4.7
$
SLS-5C-200 LGJ-300-400 100 16 105 200 5.2
#
SLS-6C-200 LGJ-500-630 125 20 130 200 6.0
SLS-7C-200 LGJ-800 125 22 130 200 7.4
线夹本体为铝制件，其余为热镀锌钢制件。
The clamp body are Aluminium, the other parts are hot-dip gAlvanized steel.

091 www.spdl.cc
