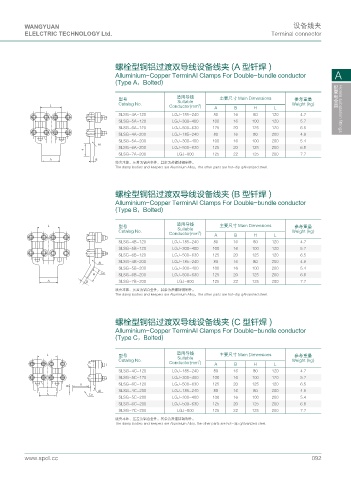

Page 114 - 网源电力科技有限公司

WANGYUAN 设备线夹
ELELCTRIC TECHNOLOGY Ltd. Terminal connector

螺栓型铜铝过渡双导线设备线夹 (A 型钎焊 )

Alluminium-Copper TerminAI Clamps For Double-bundle conductor A
(Type A，Bolted)

适用导线
型号 Suitable 主要尺寸 Main Dimensions 参考重量
. Catalog No. Conductor(mm ) A B H L Weight (kg) 配变电金具 Hotels substation fittings
2
SLSG-4A-120 LGJ-185-240 80 16 80 120 4.7
SLSG-5A-120 LGJ-300-400 100 16 100 120 5.7
SLSG-6A-120 LGJ-500-630 125 20 125 120 6.5
SLSG-4A-200 LGJ-185-240 80 16 80 200 4.9
SLSG-5A-200 LGJ-300-400 100 16 100 200 5.4
#N
SLSG-6A-200 LGJ-500-630 125 20 125 200 6.8
*
SLSG-7A-200 LGJ-800 125 22 125 200 7.7
# $
线夹本体、压盖为铝合金件，其余为热镀锌钢制件。
The damp bodies and keepers are Aluminium Alloy，the other parts are hot-dip gAlvanized steel.

螺栓型铜铝过渡双导线设备线夹 (B 型钎焊 )
Alluminium-Copper TerminAI Clamps For Double-bundle conductor
(Type B，Bolted)

适用导线
. 型号 主要尺寸 Main Dimensions 参考重量
Catalog No. Suitable 2 Weight (kg)
Conductor(mm ) A B H L
SLSG-4B-120 LGJ-185-240 80 16 80 120 4.7
SLSG-5B-120 LGJ-300-400 100 16 100 120 5.7
SLSG-6B-120 LGJ-500~630 125 20 125 120 6.5
#N SLSG-4B-200 LGJ-185~240 80 16 80 200 4.9
SLSG-5B-200 LGJ-300-400 100 16 100 200 5.4
* %W SLSG-6B-200 LGJ-500~630 125 20 125 200 6.8
# $ SLSG-7B-200 LGJ-800 125 22 125 200 7.7
线夹本体、压盖为铝合金件，其余为热镀锌钢制件。
The damp bodies and keepers are Aluminium Alloy，the other parts are hot-dip gAlvanized steel.

螺栓型铜铝过渡双导线设备线夹 (C 型钎焊 )
Alluminium-Copper TerminAI Clamps For Double-bundle conductor
(Type C，Bolted)

适用导线
. 型号 主要尺寸 Main Dimensions 参考重量
Catalog No. Suitable 2 Weight (kg)
Conductor(mm ) A B H L
SLSG-4C-120 LGJ-185-240 80 16 80 120 4.7
SLSG-5C-120 LGJ-300-400 100 16 100 120 5.7
* SLSG-6C-120 LGJ~500~630 125 20 125 120 6.5
$
#N SLSG-4C-200 LGJ-185-240 80 16 80 200 4.9
# %W
SLSG-5C-200 LGJ-300-400 100 16 100 200 5.4
SLSG-6C-200 LGJ-500~630 125 20 125 200 6.8
SLSG-7C-200 LGJ-800 125 22 125 200 7.7
线夹本体、压盖为铝合金件，其余为热镀锌钢制件。
The damp bodies and keepers are Aluminium Alloy, the other parts are hot-dip gAlvanized steel.
