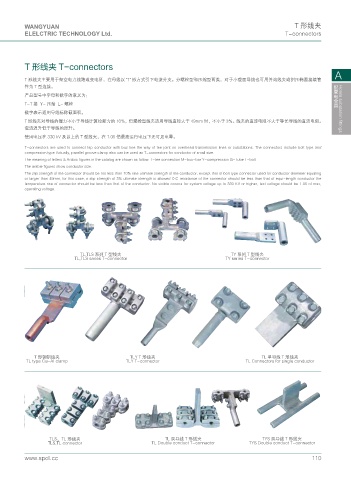

WANGYUAN T 形线夹
ELELCTRIC TECHNOLOGY Ltd. T-connectors

T 形线夹 T-connectors
A
T 形线夹主要用于架空电力线路或变电所，在母线以 "T" 形方式引下电流分支。分螺栓型和压缩型两类，对于小截面导线也可用并沟线夹或钳压椭圆接续管
作为 T 型连接。
产品型号中字母和数字的意义为：
T-T 接 Y- 压缩 L- 螺栓
数字表示适用导线标称截面积。 配变电金具 Hotels substation fittings
T 形线夹对导线的握力不小于导线计算拉断力的 10%，但螺栓型线夹适用导线直径大于 49mm 时，不小于 3%。线夹的直流电阻不大于等长导线的直流电阻。
载流温升低于导线的温升。
使用电压在 330 kV 及以上的 T 型线夹，在 1.05 倍最高运行电压下无可见电晕。
T-connectors are used to connect tap conductor with bus line the way of tee joint on overhead transmission lines or substations. The connectors include bolt type and
compression type Actually, parallel groove clamp also can be used as T-connectors for conductor of small size.
The meaning of letters & Arabic figures in the catalog are shown as follow: T-tee connection M-bus-bar Y-compression G-Tube L-bolt
The arabie figures show conductor size.
The slip strength of the connector should be not less than 10% rate ultimate strength of the conductor, except that of bolt type connector used for conductor diameter equaling
or larger than 49mm, for this case, a slip strength of 3% ultimate strength is allowed D.C resistance of the connector should be less than that of equi-length conductor the
temperature rise of connector should be less than that of the conductor. No visible corona for system voltage up to 330 KV or higher, test voltage should be 1.05 of max,
operating voltage.

TL,TLS 系列 T 型线夹 TY 系列 T 型线夹
TL,TLS series T-connector TY series T-connector

T 形铜铝线夹 TLY T 形线夹 TL 单导线 T 形线夹
TL type Cu-AI clamp TLY T-connector TL Connectors for single conductor

TLS、TL 形线夹 TL 双导线 T 形线夹 TYS 双导线 T 形线夹
TLS,TL connector TL Double conduct T-connector TYS Double conduct T-connector
