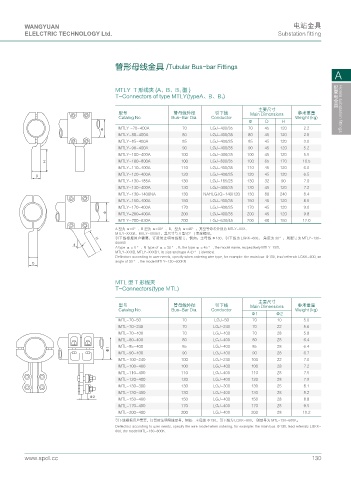

管形母线金具 /Tubular Bus-bar Fittings
A

MTLY T 形线夹 (A、B、B 1 型)
T-Connectors of type MTLY(typeA、B、B 1 )

主要尺寸 配变电金具 Hotels substation fittings
型号 管母线外径 引下线 Main Dimensions 参考重量
Catalog No. Bus-Bar Dia. Conductor Weight (kg)
Φ D H
 MTLY -70-400A 70 LGJ-400/35 70 45 120 2.2
MTLY-80-400A 80 LGJ-400/35 80 45 120 2.8
MTLY-85-400A 85 LGJ-400/35 85 45 120 3.0
MTLY-90-400A 90 LGJ-400/35 90 45 120 5.2
MTLY-100-400A 100 LGJ-400/35 100 45 120 5.5
* MTLY-100-800A 100 LGJ-800/35 100 65 170 10.5
MTLY-110-400A 110 LGJ-400/35 110 45 120 6.0
& MTLY-120-400A 120 LGJ-400/35 120 45 120 6.5
MTLY-130-185A 130 LGJ-185/25 130 32 90 7.0
MTLY-130-400A 130 LGJ-400/35 130 45 120 7.2
MTLY-130-1400NA 130 NAHLGJQ-140/120 130 80 240 8.4
MTLY-150-400A 150 LGJ-400/35 150 45 120 8.5
MTLY-170-400A 170 LGJ-400/35 170 45 120 9.0
 MTLY-200-400A 200 LGJ-400/35 200 45 120 9.8
MTLY-200-630A 200 LGJ-630/45 200 60 150 12.0
A 型为 α=0°、B 型为 α=30°、B，型为 α=45°，其型号命名分别为 MTLY-XXX、
MTLY-XXXB、MTLY-XXXB1，其尺寸与 A 型 (0° ) 完全相同。
引下线根据用户需要，订货时注明导线型号，例如：主母线 Φ130，引下线为 LGKK-600， 角度为 30°，则型号为 MTLY-130-
*
600KB
C
A type α = 0 ° , Β type of α = 30 ° , B, the type α = 45 ° , the model name, respectively MTLY-XXX,
MTLY-XXXB, MTLY-XXXB1, its size and type A (0 ° ) identical.
Deflectors according to user needs, specify when ordering wire type, for example: the main bus Φ130, lead referrals LGKK-600, an
angle of 30 ° , the model MTLY-130-600KB
&
MTL 型 T 形线夹
T-Connectors(type MTL)

主要尺寸
型号 管母线外径 引下线 Main Dimensions 参考重量
Catalog No. Bus-Bar Dia. Conductor Weight (kg)
Φ1 Φ2
MTL-70-50 70 LGJ-50 70 10 5.0
MTL-70-240 70 LGJ-240 70 22 5.6
MTL-70-400 70 LGJ-400 70 28 5.8
MTL-80-400 80 LGJ-400 80 28 6.4
MTL-85-400 85 LGJ-400 85 28 6.4

MTL-90-400 90 LGJ-400 90 28 6.7
MTL-100-240 100 LGJ-240 100 22 7.0
MTL-100-400 100 LGJ-400 100 28 7.2
MTL-110-400 110 LGJ-400 110 28 7.5
MTL-120-400 120 LGJ-400 120 28 7.9
MTL-130-300 130 LGJ-300 130 25 8.1
MTL-130-400 130 LGJ-400 130 28 8.2

MTL-150-400 150 LGJ-400 150 28 8.8
MTL-170-400 170 LGJ-400 170 28 9.5
MTL-200-400 200 LGJ-400 200 28 10.2
引下线根据用户需要，订货时注明导线型号，例如：主母线 Φ130，引下线为 LGKK-600， 则型号为 MTL-130-600K。
Deflectors according to user needs, specify the wire model when ordering, for example: the main bus Φ130, lead referrals LGKK-
600, the model MTL-130-600K.
