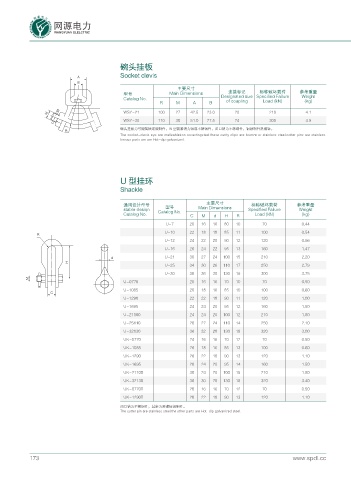

碗头挂板

Socket clevis
#
$
主要尺寸
标称破坏载荷
连接标记
型号 Main Dimensions Designated size Specified Failure 参考重量
Weight
Catalog No.
R M A B of coupling Load (kN) (kg)
/ WSY-21 100 27 42.5 23.0 20 210 4.1
WSY-30 110 30 51.0 27.5 24 300 4.9
碗头挂板为可锻铸铁或锻制件，W 型锁紧销为钢或不锈钢件，闭口销为不绣纲件，钢铁制件热镀锌。
4
The socket-clevis eye are malleableiron orcastingsteel.these curity clips are bronze or stainless steel.cotter pins are stainless.
ferrous parts are are Hot-dip galvanized.

U 型挂环
Shackle

通用设计型号 型号 主要尺寸 标称破坏载荷 参考重量
stable desiqn Catalog No. Main Dimensions Specified Failure Weight
Catalog No. C M d H R Load (kN) (kg)
U-7 20 16 16 80 10 70 0.44
U-10 22 18 18 85 11 100 0.54
4
U-12 24 22 20 90 12 120 0.96
U-16 26 24 22 95 13 160 1.47
F U-21 30 27 24 100 15 210 2.20
*
U-25 34 30 26 110 17 250 2.79
U-30 38 36 30 130 19 300 3.75
/
U-0770 20 16 16 70 10 70 0.50
U-1085 20 18 16 85 10 100 0.60
%
U-1290 22 22 18 90 11 120 1.00
U-1695 24 24 20 95 12 160 1.50
U-21100 24 24 20 100 12 210 1.80
U-25110 28 27 24 110 14 250 2.10
U-32130 36 32 28 130 18 320 3.00
UK-0770 24 16 16 70 12 70 0.50
UK-1085 26 18 16 85 13 100 0.60
UK-1290 26 22 18 90 13 120 1.10
UK-1695 28 24 20 95 14 160 1.50
UK-21100 30 24 20 100 15 210 1.80
UK-32130 36 30 28 130 18 320 3.40
UK-0770T 28 16 16 70 12 70 0.50
UK-1290T 28 22 18 90 13 120 1.10
闭口销为不锈钢件，其余为热镀锌钢制件。
The cotter pin are stainless steel.the other parts are Hot-dip galvanized steel.

173 www.spdl.cc
