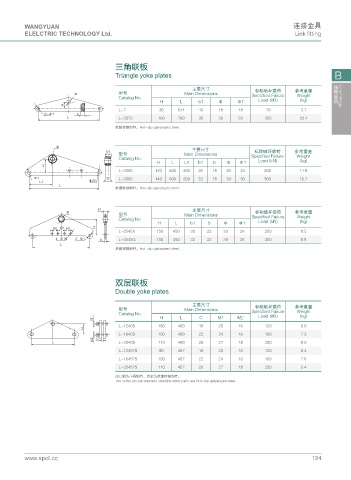

WANGYUAN                                                                                    连接金具
          ELELCTRIC TECHNOLOGY Ltd.                                                                   Link fitting





                                         三角联板

                                         Triangle yoke plates                                                       B

                                                                   主要尺寸                  标称破坏载荷       参考重量
                                         型号                    Main Dimensions         Specified Failure   Weight
                                          Catalog No.                                                                线路金具 Line fittings
                                                        H      L     b1     Φ      Φ1     Load (kN)     (kg)
                       *
                                          L-7           30    544    16     18     18       70          3.7
                          D
                        .                 L-3070       160    700    30     39     33       300         22.4
                                         热镀锌钢制件。Hot-dip galvanized steel.


                    
                                      D                            主要尺寸                  标称破坏载荷       参考重量
                                          型号                    Main Dimensions        Specified Failure   Weight
                                          Catalog No.
                                                       H    L   L1   b1   b    Φ   Φ1     Load (kN)     (kg)
                *
                                          L-2060      120  600  200  26   18   30   24      200         11.8
                                     D   L-3060      140  600  200  32   18   39   30      300         16.7
               .               
                     .
                                         热镀锌钢制件。Hot-dip galvanized steel.


                                   D                               主要尺寸
                                                                                        标称破坏载荷       参考重量
                                          型号                    Main Dimensions         Specified Failure   Weight
                                          Catalog No.
                                                       H     L    b1     b    Φ    Φ1     Load (kN)     (kg)
                                  *
                                          L-2545X      150  450    30   22    33    26      250         8.5
                                 D      L-3045G      150  450    32   22    39    26      300         8.8
                      .
                                         热镀锌钢制件。Hot-dip galvanized steel.




                                         双层联板
                                         Double yoke plates

                                                                   主要尺寸                  标称破坏载荷       参考重量
                                          型号                    Main Dimensions         Specified Failure   Weight
                                          Catalog No.
                                 /                      H      L      C     M1     M2     Load (kN)     (kg)
                                          L-1240S      180    400    18     20     16       120         6.0
                              *
                                          L-1640S      100    400    22     24     16       160         7.3
                                 /   %
                   .                      L-2040S      110    400    26     27     18       200         8.9
                                          L-12457S      80    457    18     20     16       120         6.4
                                          L-16457S     100    457    22     24     16       160         7.6
                                          L-20457S     110    457    26     27     18       200         9.4
                                         闭口销为不绣钢件,其余为热镀锌钢制件。
                                         The cotter pin are stainless steel.the other parts are Hot-dip galvanized steel.
