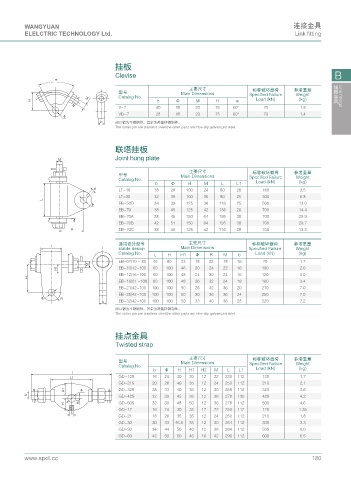

WANGYUAN                                                                                    连接金具
          ELELCTRIC TECHNOLOGY Ltd.                                                                   Link fitting





                                         挂板

                                         Clevise                                                                    B
                    ¡
                                                                  主要尺寸                  标称破坏载荷        参考重量
                                          型号                   Main Dimensions         Specified Failure   Weight
                               /          Catalog No.                                    Load (kN)      (kg)         线路金具 Line fittings
            *                                          b     Φ      M      H      α
                                          V-7          40    18     20     75    60°        70          1.8
                                          VD-7         28    18     20     75    60°        70          1.4
                       µ
                                    D    闭口销为不锈钢件,其余为热镀锌钢制件。
                                         The cotter pin are stainless steel.the other parts are Hot-dip galvanized steel.


                                         联塔挂板
                                         Joint hung plate
                     /
                                                                  主要尺寸                  标称破坏载荷        参考重量
                                          型号                   Main Dimensions         Specified Failure   Weight
                                          Catalog No.
                                                      b     Φ     H    M     L    L1     Load (kN)      (kg)
                                          LT-16       18    26   100   24    80   20       160          3.5
                                 D
                                          LT-30       32    39   100   36    80   25       300          6.8
                .
                                µ         EB-50D      34    39   125   36   116   25       500          13.0
                                          EB-70       38    45   125   42   136   26       700          14.4
                                          EB-70A      38    45   150   64   195   30       700          29.9
                          .
                                          EB-70B      42    51   150   64   195   30       700          29.7
                         *                EB-70C      38    45   125   42   116   28       700          13.3

                                          通用设计型号                  主要尺寸                  标称破坏载荷        参考重量
                   .
                                          stable desiqn        Main Dimensions         Specified Failure   Weight
                                          Catalog No.  L   H   H1   Φ    R    M    b     Load (kN)      (kg)
                                          EB-07/10 - 80  45  80  23  18  22   18   16      70           1.7
                               /
                     *                    EB-10/12-100  60  100  46  20  24   22   16      100          2.0
                                          EB-12/16-100  60  100  48  24  30   24   16      120          3.0
                                          EB-16/21 -100  80  100  48  26  32  24   18      160          3.4
          *
                                          EB-21/42-100  100  100  50  26  32  36   20      210          7.0
                                          EB-25/42-100  100  100  50  30  36  36   24      250          7.0
                     4
                                    D     EB-32/42-100  100  100  50  33  40  36   28      320          7.2
                                         闭口销为不锈钢件,其余为热镀锌钢制件。
                                         The cotter pin are stainless steel.the other parts are Hot-dip galvanized steel.


                                         挂点金具
                                         Twisted strap

                                                                  主要尺寸                  标称破坏载荷        参考重量
                                          型号                   Main Dimensions         Specified Failure   Weight
                                          Catalog No.
                                                      b   Φ   H   H1  H2   M   L   L1    Load (kN)      (kg)
                          .
                         .                GD-12S     16   24  30  30  12   22  230  112    120          1.7
                                          GD-21S     20   26  40  35  12   24  250  112    210          2.1
                       *    µ             GD-32S     28   33  40  36  12   30  258  112    320          3.6
          /                               GD-42S     32   39  45  36  12   36  278  130    420          4.2
                            *             GD-50S     32   39  48  50  12   36  278  112    500          4.6
                       *
                                          GD-12      16   24  30  35  12   22  250  112    120          1.35
                         D
                                          GD-21      18   26  35  35  12   24  250  112    210          1.8
                                          GD-30      30   33  46.5  35  12  30  264  112   300          3.3
                                          GD-50      34   44  50  40  12   36  264  112    500          6.0
                                          GD-60      42   50  50  46  16   42  290  112    600          6.5
