WANGYUAN 架空绝缘导线金具
ELELCTRIC TECHNOLOGY Ltd. Aerial Insulation Conductor Fitting

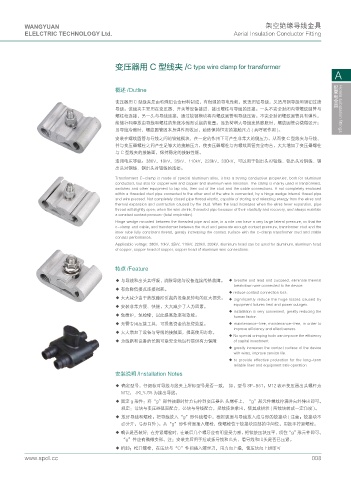

变压器用 C 型线夹 /C type wire clamp for transformer
A

概述 /Outline
变压器用 C 型线夹是由特殊铝合金材料制成，有很强的导电性能，既适用铝导线，又适用铜导线和铜铝过渡
导线。该线夹主要用在变压器、开关等设备接进、接出螺柱与导线的连接。一头不完全封闭内带螺纹圆管与 配变电金具 Hotels substation fittings
螺柱相连接，另一头与导线连接，通过铰链楔块将内螺纹圆管和导线压紧。不完全封闭螺纹圆管具有弹性，
能储存和释放由导线和螺柱的热胀冷缩而引起的能量。当负荷增大导线发热膨胀时，螺纹圆管会微微张开；
当导线冷缩时，螺纹圆管因本身弹性而收回，始终保持恒定的接触压力 ( 共呼吸作用 )。
安装在螺纹圆管与导线之间的铰链楔块，在一定的作用下可产生非常大的侧压力，从而使 C 型线夹与导线，
并与变压器螺柱之间产生足够大的接触压力，使变压器螺柱与内螺纹圆管完全吻合，大大增加了变压器螺柱
与 C 型线夹的接触面，保持稳定的接触性能。
适用电压等级：380V、10kV、35kV、110kV、220kV、330kV，可以用于铝出头对铝线、铝出头对铜线、铜
出头对铜线、铜出头对铝线的连接。
Transformers C-clamp is made of special aluminum alloy, it has a strong conductive properties, both for aluminum
conductors, but also for copper wire and copper and aluminum wire transition. The clamp is mainly used in transformers,
switches and other equipment to tap into, then out of the stud and the cable connections. A not completely enclosed
within a threaded stud pipe connected to the other end of the wire is connected, by a hinge wedge internal thread pipe
and wire pressed. Not completely closed pipe thread elastic, capable of storing and releasing energy from the wires and
thermal expansion and contraction caused by the stud. When the load increases when the wires fever expansion, pipe
thread will slightly open; when the wire shrink, threaded pipe because of their elasticity and recovery, and always maintain
a constant contact pressure (total respiration).
Hinge wedge mounted between the threaded pipe and wire, in a role can have a very large lateral pressure, so that the
c-clamp and cable, and transformer between the stud and generate enough contact pressure, transformer stud and the
inner tube fully consistent thread, greatly increasing the contact surface with the c-clamp transformer stud and stable
contact performance.
Applicable voltage: 380V, 10kV, 35kV, 110kV, 220kV, 330kV, aluminum head can be used for aluminum, aluminum head
of copper, copper head of copper, copper head of aluminum wire connections.

特点 /Feature

◆ 与导线和出头共呼吸，消除导线与设备连接的热故障。 ◆ breathe and lead and succeed, eliminate thermal
breakdown wire connected to the device.
◆ 有效降低接点连接损耗。
◆ reduce contact connection loss.
◆ 大大减少由于热故障所引起的设备及停电的巨大损失。 ◆ significantly reduce the huge losses caused by
◆ 安装非常方便、快捷，大大减少了人为因素。 equipment failures heat and power outages.
◆ installation is very convenient, greatly reducing the
◆ 免维护，免检修，以此提高效率和效能。 human factor.
◆ 无需专用压接工具，可提高资金的投资效益。 ◆ maintenance-free, maintenance-free, in order to
improve efficiency and effectiveness.
◆ 大大增加了设备与导线的接触面，提高使用寿命。
◆ No special crimping tools can improve the efficiency
◆ 为线路和设备的长期可靠安全地运行提供有力保障 of capital investment.
◆ greatly increases the contact surface of the device
with wires, improve service life.
◆ to provide effective protection for the long-term
reliable lines and equipment safe operation
安装说明 /Installation Notes
◆ 确定型号：仔细核对导线与线夹上所标型号是否一致， 如：型号 SP-B51，M12 表示变压器出头螺杆为
M12， JKLYJ35 为接出导线。
◆ 固定 g 形件：将“g”形件按顺时针方向拧到变压器出 头螺杆上，“g”形元件螺纹拧满并向外伸出即可。
规定：母块与变压器弧面配合，公块与导线配合，把铰接块拿出，使其成拱状 ( 两铰块转成一定角度 )。
◆ 放好导线和螺栓：把导线放入“g”形件线槽中，根据弧面与导线放入成弓形的铰接块 ( 注意：铰接块不
必分开，弓形向外 )。从“g”形件背面插入螺栓，使螺栓位于铰接块顶部的中间位，用扳手拧紧螺栓。
◆ 确认是否装好：在拧紧螺栓时，在最后几个螺牙应有明显受力感，把铰接压块压平，顶住“g”形元件即可。
“g”件应有微微变形。注：安装完后用手拉或扳导线和出头，看导线和出头是否已压紧。
◆ 拆卸：松开螺栓，在压块与“C”件间插入螺丝刀，用力向上撬，使压块向上拱即可
