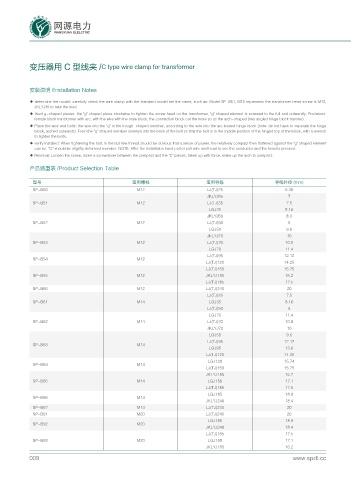

变压器用 C 型线夹 /C type wire clamp for transformer

安装说明 /Installation Notes
◆ determine the model: carefully check the wire clamp with the standard model are the same, such as: Model SP-B51, M12 represents the transformer head screw is M12,
JKLYJ35 to take the lead.
◆ fixed g-shaped pieces: the "g" shaped piece clockwise to tighten the screw head on the transformer, "g" shaped element is screwed to the full and outwardly. Provisions:
female block transformer with arc, with the wire with the male block, the connection block out the more so as the arch-shaped (two angled hinge block transfer).
◆ Place the wire and bolts: the wire into the "g" in the trough-shaped member, according to the wire into the arc bowed hinge block (note: do not have to separate the hinge
block, arched outwards). From the "g" shaped member inserted into the back of the bolt so that the bolt is in the middle position of the hinged top of the block, with a wrench
to tighten the bolts.
◆ verify installed: When tightening the bolt, in the last few thread should be obvious that a sense of power, the relatively compact then flattened against the "g" shaped element
can be. "G" should be slightly deformed member. NOTE: After the installation hand pull or pull wire and head to see the conductor and the head is pressed.
◆ Removal: Loosen the screw, insert a screwdriver between the compact and the "C" pieces, taken up with force, make up the arch to compact.

产品选型表 /Product Selection Table

型号 适用螺柱 适用导线 导线外径 (mm)
SP-B50 M12 LJ(TJ)25 6.36
JKLYJ35 7
SP-B51 M12 LJ(TJ)35 7.5
LGJ35 8.16
JKLYJ50 8.3
SP-B52 M12 LJ(TJ)50 9
LGJ50 9.6
JKLYJ70 10
SP-B53 M12 LJ(TJ)70 10.8
LGJ70 11.4
LJ(TJ)95 12.12
SP-B54 M12
LJ(TJ)120 14.25
LJ(TJ)150 15.75
SP-B55 M12 JKLYJ185 16.2
LJ(TJ)185 17.5
SP-B56 M12 LJ(TJ)240 20
LJ(TJ)35 7.5
SP-B61 M14 LGJ35 8.16
LJ(TJ)50 9
LGJ70 11.4
SP-B62 M14 LJ(TJ)70 10.8
JKLYJ70 10
LGJ50 9.6
LJ(TJ)95 12.12
SP-B63 M14
LGJ95 13.6
LJ(TJ)120 14.25
LGJ120 15.74
SP-B64 M14
LJ(TJ)150 15.75
JKLYJ185 16.2
SP-B65 M14 LGJ150 17.1
LJ(TJ)185 17.5
LGJ185 18.9
SP-B66 M14
JKLYJ240 18.4
SP-B67 M14 LJ(TJ)240 20
SP-B91 M20 LJ(TJ)240 20
LGJ185 18.9
SP-B92 M20
JKLYJ240 18.4
LJ(TJ)185 17.5
SP-B93 M20 LGJ150 17.1
JKLYJ185 16.2
