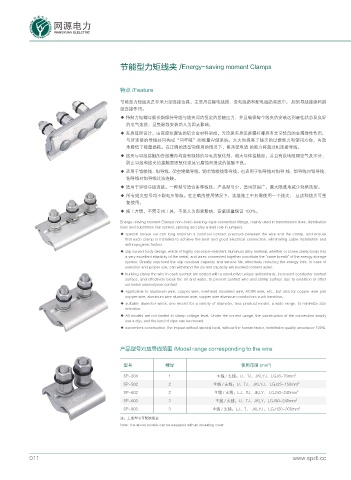

Page 33 - 网源电力科技有限公司

节能型力矩线夹 /Energy-saving moment Clamps

特点 /Feature
节能型力矩线夹是非承力型连接金具，主要用在输电线路、变电线路和配电线路系统中， 起到导线接续和跳
线连接作用。
◆ 特制力矩螺母能长期保持导线与线夹间的恒定的接触压力，并且确保每个线夹的安装达到最佳状态及良好
的电气连接，且免除线安装的人为因素影响。
◆ 夹身弧形设计，由高度抗腐蚀的铝合金材料制成，无论是夹身还是螺杆都具有非常优良的金属弹性作用，
与所连接的导线共同构成“同呼吸”的能量存储系统。大大地提高了线夹的过载能力和使用寿命，有效
地降低了能量损耗。在正确的选型和使用的情况下，能承受电流 的能力将超过相连接导线。
◆ 线夹与导线接触的各线槽内均涂有独特的导电抗氧化剂，增大导体接触面，并且有效地阻隔空气及水分，
防止导线和线夹的接触面因氧化或其它腐蚀而造成的接触不良。
◆ 适用于铝绞线、铜导线、架空绝缘导线、钢芯铝绞线等导线，也适用于铜导线对铜导 线、铝导线对铝导线、
铜导线对铝导线过渡连接。
◆ 适用于异径导线连接，一种型号适合多种线径，产品型号少，适用范围广，最大限度地减少规格选型。
◆ 所有线夹型号均不限电压等级。在正确的使用情况下，连接施工中只需使用一个线夹， 且该种线夹可重
复使用。
◆ 施工方便，不需专用工具，不受人为因素影响，安装质量保证 100%。
Energy-saving moment Clamps non-load-bearing-type connection fittings, mainly used in transmission lines, distribution
lines and substation line system, splicing and play a lead role in jumpers.
◆ special torque nut can long maintain a constant contact pressure between the wire and the clamp, and ensure
that each clamp is installed to achieve the best and good electrical connection, eliminating cable installation and
anthropogenic factors.
◆ clip curved body design, made of highly corrosion-resistant aluminum alloy material, whether or screw clamp body has
a very excellent elasticity of the metal, and wires connected together constitute the "same breath" of the energy storage
system. Greatly improved the clip overload capacity and service life, effectively reducing the energy loss. In case of
selection and proper use, can withstand the current capacity will exceed connect wires.
◆ trunking clamp the wire in each contact are coated with a conductive unique antioxidants, increased conductor contact
surface, and effectively block the air and water, to prevent contact wire and clamp surface due to oxidation or other
corrosion caused poor contact.
◆ applicable to aluminum wire, copper wire, overhead insulated wire, ACSR wire, etc., but also for copper wire pair
copper wire, aluminum wire aluminum wire, copper wire aluminum conductors such transition.
◆ suitable diameter wires, one model for a variety of diameter, less product model, a wide range, to minimize size
selection.
◆ All models are not limited to clamp voltage level. Under the correct usage, the construction of the connection simply
use a clip, and the kind of clips can be reused.
◆ convenient construction, the impact without special tools, without the human factor, installation quality assurance 100%.

产品型号对应导线范围 /Model range corresponding to the wire

2
型号 螺母 使用范围 (mm )
SP-301 1 主线 / 支线：U、TJ、JKLYJ、LGJ6~70mm 2
SP-502 2 主线 / 支线：U、TJ、 JKLYJ、 LGJ25~150mm 2
SP-602 2 主线 / 支线：LJ、TJ、JKLY、 LGJ50~240mm 2
SP-603 3 主线 / 支线：U、TJ、JKLY、LGJ50~240mm 2
SP-803 3 主线 / 支线：LJ、T、 JKLYJ， LGJ120~300mm 2
注：上述型号可配绝缘罩
Note: The above models can be equipped with an insulating cover
