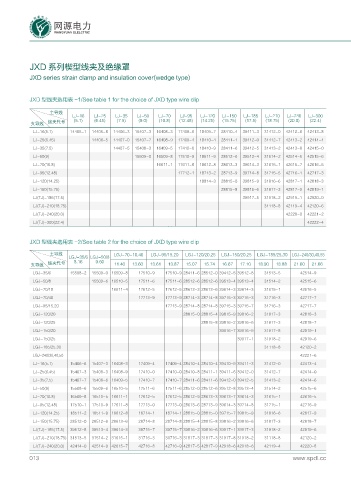

JXD 系列楔型线夹及绝缘罩
JXD series strain clamp and insulation cover(wedge type)
JXD 型线夹选用表 -1/See table 1 for the choice of JXD type wire clip
主导线
LJ-16 LJ-25 LJ-35 LJ-50 LJ-70 LJ-95 LJ-120 LJ-150 LJ-185 LJ-210 LJ-240 LJ-300
支导线 线夹代号 (5.1) (6.45) (7.5) (9.0) (10.8) (12.48) (14.25) (15.75) (17.5) (18.75) (20.0) (22.4)
LJ-16(5.1) 14405-1 14405-8 14406-3 15407-3 16408-3 17408-6 18409-7 28410-4 39411-3 31412-0 42412-6 42413-8
LJ-25(6.45) 14406-5 14407-0 15407-7 16408-9 17409-4 18410-4 28411-1 39412-0 31412-7 42413-2 42414-4
LJ-35(7.5) 14407-5 15408-3 16409-5 17410-0 18410-9 28411-6 39412-5 31413-2 42413-8 42415-0
LJ-50(9) 15509-0 16509-8 17510-9 18511-9 28512-6 39513-4 31514-2 42514-5 42515-6
LJ-70(10.8) 16611-1 17611-8 18612-8 28613-3 39614-3 31615-1 42615-7 42616-5
LJ-95(12.48) 17712-1 18713-2 28713-9 39714-8 31715-5 42716-1 42717-3
LJ-120(14.25) 18814-3 28815-0 39815-9 31816-6 42817-1 42818-3
LJ-150(15.75) 28815-8 39816-6 31817-3 42817-9 42819-1
LJ(TJ)-185(17.5) 39917-5 31918-2 42919-1 42920-0
LJ(TJ)-210(18.75) 31118-8 42119-4 42120-6
LJ(TJ)-240(20.0) 42220-0 42221-2
LJ(TJ)-300(22.4)
JXD 型线夹选用表 -1/See table 1 for the choice of JXD type wire clip 42222-4
JXD 型线夹选用表 -2/See table 2 for the choice of JXD type wire clip
主导线 LGJ-70-10,40 LGJ-95/15,20 LGJ-120/20,25 LGJ-150/20,25 LGJ-185/25,30 LGJ-240/30,40,55
LGJ-35/6 LGJ-50/8
支导线 线夹代号 8.16 9.60 11.40 13.60 13.61 13.87 15.07 15.74 16.67 17.10 18.90 18.88 21.60 21.66
LGJ-35/6 15508-2 15509-0 16509-8 17510-9 17510-9 28411-6 28512-0 39412-5 39512-8 31513-5 42514-9
LGJ-50/8 15509-6 16510-5 17511-6 17511-6 28512-6 28512-6 39513-4 39513-4 31514-2 42515-6
LGJ-70/10 16611-4 17612-5 17612-5 28613-3 28613-6 39614-3 39614-3 31615-1 42616-5
LGJ-70/40 17713-9 17713-9 28714-3 28714-8 39715-3 39715-3 31716-3 42717-7
LGJ-95/15,20 17713-9 28714-8 28714-8 39715-3 39715-7 31716-3 42717-7
LGJ-120/20 28815-0 28815-4 39815-9 39816-2 31817-3 42818-3
LGJ-120/25 28815-8 39816-2 39816-6 31817-3 42818-7
LGJ-150/20 39916-7 39916-9 31917-8 42919-1
LGJ-150/25 39917-1 31918-2 42919-6
LGJ-185/25,30 31118-8 42120-2
LGJ-240/30,40,50 42221-6
LJ-16(5.1) 15406-6 15407-3 16408-3 17409-4 17409-4 28410-4 28410-4 39410-9 39411-3 31412-0 42413-4
LJ-25(6.45) 15407-3 15408-3 16408-9 17410-0 17410-0 28410-8 28411-1 39411-6 39412-0 31412-7 42414-0
LJ-35(7.5) 15407-7 15408-6 16409-5 17410-7 17410-7 28411-6 28411-6 39412-0 39412-5 31413-2 42414-6
LJ-50(9) 15508-6 15509-6 16510-5 17511-6 17511-6 28512-0 28512-6 39512-8 39513-4 31514-2 42515-6
LJ-70(10.8) 16509-8 16510-5 16611-1 17612-5 17612-5 28612-9 28613-3 39613-7 39614-3 31615-1 42616-5
LJ-95(12.48) 17510-1 17510-9 17611-8 17713-0 17713-0 28613-6 28713-9 39614-3 39714-8 31715-1 42716-9
LJ-120(14.25) 18511-2 18511-9 18612-8 18714-1 18714-1 28815-0 28815-0 39715-7 39815-9 31816-6 42817-9
LJ-150(15.75) 28512-0 28512-6 28613-6 28714-8 28714-8 28815-4 28815-8 39816-2 39816-6 31817-3 42818-7
LJ(TJ)-185(17.5) 39512-8 39513-4 39614-3 39715-7 39715-7 39816-2 39816-6 39917-1 39917-3 31918-2 42919-6
LJ(TJ)-210(18.75) 31513-5 31514-2 31615-1 31716-3 31716-3 31817-3 31817-3 31917-8 31918-2 31118-8 42120-2
LJ(TJ)-240(20.0) 42414-0 42514-9 42615-7 42716-8 42716-9 42817-5 42817-9 42918-6 42918-6 42119-4 42220-8
