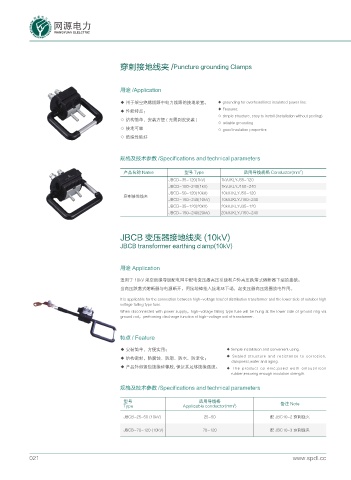

穿剌接地线夹 /Puncture grounding Clamps

用途 /Application

◆ 用于架空绝缘线路中电力线路的接地装置。 ◆ grounding for overhead lines insulated power line.
◆ 性能特点： ◆ Features:
◇ simple structure, easy to install (installation without peeling)
◇ 结构简单，安装方便 ( 无需剥皮安装 )
◇ reliable grounding
◇ 接地可靠 ◇ good insulation properties
◇ 绝缘性能好

规格及技术参数 /Specifications and technical parameters

2
产品名称 Name 型号 Type 适用导线规格 Conductor(mm )
JBCD-35~120(1kV) 1kVJKLYJ35~120
JBCD-150~240(1kV) 1kVJKLYJ150~240
JBCD-50~120(10kV) 10kVJKLYJ50~120
穿刺接地线夹
JBCD-150~240(10kV) 10kVJKLYJ150~240
JBCD-35~120(20kV) 20kVJKLYJ35~120
JBCD-150~240(20kV) 20kVJKLYJ150~240

JBCB 变压器接地线夹 (10kV)
JBCB transformer earthing clamp(10kV)

用途 Application

适用于 10kV 架空绝缘导线配电网中配电变压器高压引线和户外高压跌落式熔断器下端的接续。
当高压跌落式熔断器与电源断开，用接地棒挂入接地环下端，起变压器高压线圈放电作用。
It is applicable for the connection between high-voltage lead of distribution transformer and the lower side of outdoor high
voltage falling type fuse.
When disconnected with power supply，high-voltage falling type fuse will be hung at the lower side of ground ring via
ground rod，performing discharge function of high-voltage coil of transformer.

特点 / Feature

◆ 安装简单，方便实用； ◆ Simple installation and convenient using.
◆ Sealed structure and resistance to corrosion,
◆ 结构密封，防腐蚀、防潮、防水、防老化；
dampness,water and aging.
◆ 产品外部紧包绝缘硅橡胶，保证其足够绝缘强度。 ◆ The product os emc;psed woth omsusilicon
rubber,ensuring enough insulation strength.

规格及技术参数 /Specifications and technical parameters

型号 适用导线格 备注 Note
2
Type Applicable conductor(mm )
JBCB-25~50 (10kV) 25~50 配 JBC10-2 穿刺线夹

JBCB-70~120 (10kV) 70~120 配 JBC10-3 穿刺线夹
