WANGYUAN 架空绝缘导线金具
ELELCTRIC TECHNOLOGY Ltd. Aerial Insulation Conductor Fitting

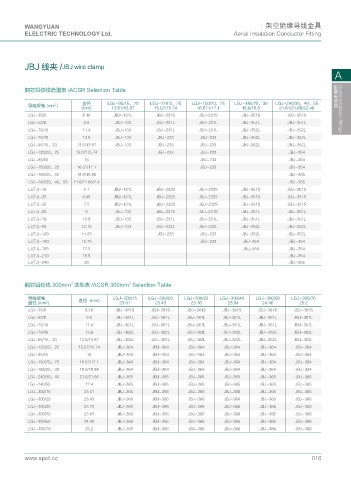

JBJ 线夹 /JBJ wire clamp
A
钢芯铝绞线选型表 /ACSR Selection Table
2
导线规格 (mm ) 直径 LGJ-95/15，20 LGJ-120^0，25 LGJ-150/20，25 LGJ-185/25，30 LGJ-240/30，40，55
(mm) 13.61/13.87 15.07/15.74 16.671/17.1 18.9/18.8 21.61/21.66/22.40 配变电金具 Hotels substation fittings
LGJ-35/6 8.16 JBJ-131L JBJ-231S JBJ-231S JBJ-351S JBJ-351S
LGJ-50/8 9.6 JBJ-132 JBJ-231L JBJ-231L JBJ-351L JBJ-351L
LGJ-70/10 11.4 JBJ-133 JBJ-231L JBJ-231L JBJ-352L JBJ-352L
LGJ-70/40 13.6 JBJ-133 JBJ-233 JBJ-233 JBJ-352L JBJ-352L
LGJ-95/15，20 13.6/13.87 JBJ-133 JBJ-233 JBJ-233 JBJ-352L JBJ-352L
LGJ-120/20，25 15.07/15.74 JBJ-233 JBJ-233 JBJ-354
LGJ-95/55 16 JBJ-233 JBJ-354
LGJ-150/20，25 16.67/17.1 JBJ-233 JBJ-354
LGJ-185/25，30 18.9/18.88 JBJ-355
LGJ-240/30，40，55 21.6/21.66/2.4 JBJ-355
LJ(TJ)-16 5.1 JBJ-131L JBJ-232S JBJ-232S JBJ-351S JBJ-351S
LJ(TJ)-25 6.45 JBJ-131L JBJ-232S JBJ-232S JBJ-351S JBJ-351S
LJ(TJ)-35 7.5 JBJ-131L JBJ-232S JBJ-232S JBJ-351S JBJ-351S
LJ(TJ)-50 9 JBJ-132 JBJ-231S JBJ-231S JBJ-351L JBJ-351L
LJ(TJ)-70 10.8 JBJ-132 JBJ-231L JBJ-231L JBJ-351L JBJ-351L
LJ(TJ)-95 12.12 JBJ-133 JBJ-232L JBJ-232L JBJ-352L JBJ-352L
LJ(TJ)-120 14.25 JBJ-233 JBJ-233 JBJ-352L JBJ-352L
LJ(TJ)-150 15.75 JBJ-233 JBJ-354 JBJ-354
LJ(TJ)-185 17.5 JBJ-354 JBJ-354
LJ(TJ)-210 18.8 JBJ-354
LJ(TJ)-240 20 JBJ-355
2
2
钢芯铝绞线 300mm 选型表 /ACSR 300mm Selection Table
导线规格 直径 (mm) LGJ-300/15 LGJ-300/20 LGJ-300/25 LGJ-300/40 LGJ-300/50 LGJ-300/70
2
线径 (mm ) 23.01 23.43 23.76 23.94 24.46 25.2
LGJ-35/6 8.16 JBJ-361S JBJ-361S JBJ-361S JBJ-361S JBJ-361S JBJ-361S
LGJ-50/8 9.6 JBJ-361L JBJ-361L JBJ-361L JBJ-361L JBJ-361L JBJ-361L
LGJ-70/10 11.4 JBJ-361L JBJ-361L JBJ-361L JBJ-361L JBJ-361L JBJ-361L
LGJ-70/40 13.6 JBJ-362L JBJ-362L JBJ-362L JBJ-362L JBJ-362L JBJ-362L
LGJ-95/15，20 13.6/13.87 JBJ-362L JBJ-362L JBJ-362L JBJ-362L JBJ-362L JBJ-362L
LGJ-120/20，25 15.07/15.74 JBJ-364 JBJ-364 JBJ-364 JBJ-364 JBJ-364 JBJ-364
LGJ-95/55 16 JBJ-364 JBJ-364 JBJ-364 JBJ-364 JBJ-364 JBJ-364
LGJ-150/20，25 16.67/17.1 JBJ-364 JBJ-364 JBJ-364 JBJ-364 JBJ-364 JBJ-364
LGJ-185/25，30 18.9/18.88 JBJ-364 JBJ-364 JBJ-364 JBJ-364 JBJ-364 JBJ-364
LGJ-240/30，40 21.6/21.66 JBJ-365 JBJ-365 JBJ-365 JBJ-365 JBJ-365 JBJ-365
LGJ-240/55 22.4 JBJ-365 JBJ-365 JBJ-365 JBJ-365 JBJ-365 JBJ-365
LGJ-300/15 23.01 JBJ-366 JBJ-366 JBJ-366 JBJ-366 JBJ-366 JBJ-366
LGJ-300/20 23.43 JBJ-366 JBJ-366 JBJ-366 JBJ-366 JBJ-366 JBJ-366
LGJ-300/25 23.76 JBJ-366 JBJ-366 JBJ-366 JBJ-366 JBJ-366 JBJ-366
LGJ-300/40 23.94 JBJ-366 JBJ-366 JBJ-366 JBJ-366 JBJ-366 JBJ-366
LGJ-300/50 24.46 JBJ-366 JBJ-366 JBJ-366 JBJ-366 JBJ-366 JBJ-366
LGJ-300/70 25.2 JBJ-366 JBJ-366 JBJ-366 JBJ-366 JBJ-366 JBJ-366
