WANGYUAN 架空绝缘导线金具
ELELCTRIC TECHNOLOGY Ltd. Aerial Insulation Conductor Fitting

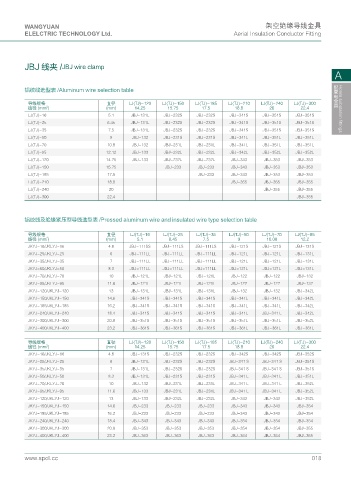

JBJ 线夹 /JBJ wire clamp
A
铝绞线选型表 /Aluminum wire selection table
导线规格 直径 LJ(TJ)-120 LJ(TJ)-150 LJ(TJ)-185 LJ(TJ)-210 LJ(TJ)-240 LJ(TJ)-300
2
线径 (mm ) (mm) 14.25 15.75 17.5 18.8 20 22.4 配变电金具 Hotels substation fittings
LJ(TJ)-16 5.1 JBJ-131L JBJ-232S JBJ-232S JBJ-341S JBJ-351S JBJ-351S
LJ(TJ)-25 6.45 JBJ-131L JBJ-232S JBJ-232S JBJ-341S JBJ-351S JBJ-351S
LJ(TJ)-35 7.5 JBJ-131L JBJ-232S JBJ-232S JBJ-341S JBJ-351S JBJ-351S
LJ(TJ)-50 9 JBJ-132 JBJ-231S JBJ-231S JBJ-341L JBJ-351L JBJ-351L
LJ(TJ)-70 10.8 JBJ-132 JBJ-231L JBJ-231L JBJ-341L JBJ-351L JBJ-351L
LJ(TJ)-95 12.12 JBJ-133 JBJ-232L JBJ-232L JBJ-342L JBJ-352L JBJ-352L
LJ(TJ)-120 14.25 JBJ-133 JBJ-232L JBJ-232L JBJ-343 JBJ-353 JBJ-353
LJ(TJ)-150 15.75 JBJ-233 JBJ-233 JBJ-343 JBJ-353 JBJ-353
LJ(TJ)-185 17.5 JBJ-233 JBJ-343 JBJ-353 JBJ-353
LJ(TJ)-210 18.8 JBJ-355 JBJ-355 JBJ-355
LJ(TJ)-240 20 JBJ-355 JBJ-355
LJ(TJ)-300 22.4 JBJ-355
铝绞线及绝缘紧压型导线选型表 /Pressed aluminum wire and insulated wire type selection table
导线规格 直径 LJ(TJ)-16 LJ(TJ)-25 LJ(TJ)-35 LJ(TJ)-50 LJ(TJ)-70 LJ(TJ)-95
2
线径 (mm ) (mm) 5.1 6.45 7.5 9 10.08 12.2
JKYJ-16/JKLYJ-16 4.8 JBJ-111SS JBJ-111LS JBJ-111LS JBJ-121S JBJ-121S JBJ-131S
JKYJ-25/JKLYJ-25 6 JBJ-111LL JBJ-111LL JBJ-111LL JBJ-121L JBJ-121L JBJ-131L
JKYJ-35/JKLYJ-35 7 JBJ-111LL JBJ-111LL JBJ-111LL JBJ-121L JBJ-121L JBJ-131L
JKYJ-50/JKLYJ-50 8.3 JBJ-111LL JBJ-111LL JBJ-111LL JBJ-121L JBJ-121L JBJ-131L
JKYJ-70/JKLYJ-70 10 JBJ-121L JBJ-121L JBJ-121L JBJ-122 JBJ-122 JBJ-132
JKYJ-95/JKLYJ-95 11.6 JBJ-121L JBJ-121L JBJ-121L JBJ-122 JBJ-122 JBJ-132
JKYJ-120/JKLYJ-120 13 JBJ-131L JBJ-131L JBJ-131L JBJ-132 JBJ-132 JBJ-342L
JKYJ-150/JKLYJ-150 14.6 JBJ-341S JBJ-341S JBJ-341S JBJ-341L JBJ-341L JBJ-342L
JKYJ-185/JKLYJ-185 16.2 JBJ-341S JBJ-341S JBJ-341S JBJ-341L JBJ-341L JBJ-342L
JKYJ-240/JKLYJ-240 18.4 JBJ-341S JBJ-341S JBJ-341S JBJ-341L JBJ-341 L JBJ-342L
JKYJ-300/JKLYJ-300 20.8 JBJ-351S JBJ-351S JBJ-351S JBJ-351L JBJ-351L JBJ-352L
JKYJ-400/JKLYJ-400 23.2 JBJ-361S JBJ-361S JBJ-361S JBJ-361L JBJ-361L JBJ-361L
导线规格 直径 LJ(TJ)-120 LJ(TJ)-150 LJ(TJ)-185 LJ(TJ)-210 LJ(TJ)-240 LJ(TJ)-300
2
线径 (mm ) (mm) 14.25 15.75 17.5 18.8 20 22.4
JKYJ-16/JKLYJ-16 4.8 JBJ-131S JBJ-232S JBJ-232S JBJ-342S JBJ-342S JBJ-352S
JKYJ-25/JKLYJ-25 6 JBJ-131L JBJ-232S JBJ-232S JBJ-341 S JBJ-341 S JBJ-351S
JKYJ-35/JKLYJ-35 7 JBJ-131L JBJ-232S JBJ-232S JBJ-341 S JBJ-341 S JBJ-351S
JKYJ-50/JKLYJ-50 8.3 JBJ-131L JBJ-231S JBJ-231S JBJ-341 L JBJ-341 L JBJ-351L
JKYJ-70/JKLYJ-70 10 JBJ-132 JBJ-231L JBJ-231L JBJ-341 L JBJ-341 L JBJ-352L
JKYJ-95/JKLYJ-95 11.6 JBJ-133 JBJ-231L JBJ-231L JBJ-341 L JBJ-341 L JBJ-352L
JKYJ-120/JKLYJ-120 13 JBJ-133 JBJ-232L JBJ-232L JBJ-343 JBJ-343 JBJ-352L
JKYJ-150/JKLYJ-150 14.6 JBJ-233 JBJ-233 JBJ-233 JBJ-343 JBJ-343 JBJ-354
JKYJ-185/JKLYJ-185 16.2 JBJ-233 JBJ-233 JBJ-233 JBJ-343 JBJ-343 JBJ-354
JKYJ-240/JKLYJ-240 18.4 JBJ-343 JBJ-343 JBJ-343 JBJ-354 JBJ-354 JBJ-354
JKYJ-300/JKLYJ-300 20.8 JBJ-353 JBJ-353 JBJ-353 JBJ-354 JBJ-354 JBJ-355
JKYJ-400/JKLYJ-400 23.2 JBJ-363 JBJ-363 JBJ-363 JBJ-364 JBJ-364 JBJ-365
