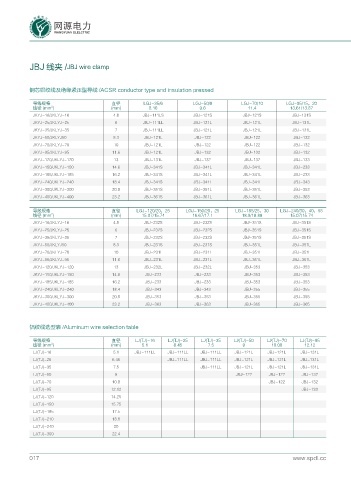

P. 39
JBJ 线夹 /JBJ wire clamp
钢芯铝绞线及绝缘紧压型导线 /ACSR conductor type and insulation pressed
导线规格 直径 LGJ-35/6 LGJ-50/8 LGJ-70/10 LGJ-95/15，20
线径 (mm ) 2 (mm) 8.16 9.6 11.4 13.61/13.87
JKYJ-16/JKLYJ-16 4.8 JBJ-111LS JBJ-121S JBJ-121S JBJ-131S
JKYJ-25/JKLYJ-25 6 JBJ-111LL JBJ-121L JBJ-121L JBJ-131L
JKYJ-35/JKLYJ-35 7 JBJ-111LL JBJ-121L JBJ-121L JBJ-131L
JKYJ-50/JKLYJ50 8.3 JBJ-121L JBJ-122 JBJ-122 JBJ-132
JKYJ-70/JKLYJ-70 10 JBJ-121L JBJ-122 JBJ-122 JBJ-132
JKYJ-95/JKLYJ-95 11.6 JBJ-121L JBJ-132 JBJ-132 JBJ-132
JKYJ-120/JKLYJ-120 13 JBJ-131L JBJ-132 JBJ-132 JBJ-133
JKYJ-150/JKLYJ-150 14.6 JBJ-341S JBJ-341L JBJ-341L JBJ-233
JKYJ-185/JKLYJ-185 16.2 JBJ-341S JBJ-341L JBJ-341L JBJ-233
JKYJ-240/JKLYJ-240 18.4 JBJ-341S JBJ-341L JBJ-341L JBJ-343
JKYJ-300/JKLYJ-300 20.8 JBJ-351S JBJ-351L JBJ-351L JBJ-353
JKYJ-400/JKLYJ-400 23.2 JBJ-361S JBJ-361L JBJ-361L JBJ-363
导线规格 直径 LGJ-120/20，25 LGJ-150/20，25 LGJ-185/25，30 LGJ-240/30，40，55
线径 (mm ) 2 (mm) 15.07/15.74 16.67/17.1 18.9/18.88 15.07/15.74
JKYJ-16/JKLYJ-16 4.8 JBJ-232S JBJ-232S JBJ-351S JBJ-351S
JKYJ-25/JKLYJ-25 6 JBJ-232S JBJ-232S JBJ-351S JBJ-351S
JKYJ-35/JKLYJ-35 7 JBJ-232S JBJ-232S JBJ-351S JBJ-351S
JKYJ-50/JKLYJ50 8.3 JBJ-231S JBJ-231S JBJ-351L JBJ-351L
JKYJ-70/JKLYJ-70 10 JBJ-231L JBJ-231L JBJ-351L JBJ-351L
JKYJ-95/JKLYJ-95 11.6 JBJ-231L JBJ-231L JBJ-351L JBJ-351L
JKYJ-120/JKLYJ-120 13 JBJ-232L JBJ-232L JBJ-353 JBJ-353
JKYJ-150/JKLYJ-150 14.6 JBJ-233 JBJ-233 JBJ-353 JBJ-353
JKYJ-185/JKLYJ-185 16.2 JBJ-233 JBJ-233 JBJ-353 JBJ-353
JKYJ-240/JKLYJ-240 18.4 JBJ-343 JBJ-343 JBJ-355 JBJ-355
JKYJ-300/JKLYJ-300 20.8 JBJ-353 JBJ-353 JBJ-355 JBJ-355
JKYJ-400/JKLYJ-400 23.2 JBJ-363 JBJ-363 JBJ-365 JBJ-365
铝绞线选型表 /Aluminum wire selection table
导线规格 直径 LJ(TJ)-16 LJ(TJ)-25 LJ(TJ)-35 LJ(TJ)-50 LJ(TJ)-70 LJ(TJ)-95
线径 (mm ) 2 (mm) 5.1 6.45 7.5 9 10.08 12.12
LJ(TJ)-16 5.1 JBJ-111LL JBJ-111LL JBJ-111LL JBJ-121L JBJ-121L JBJ-131L
LJ(TJ)-25 6.45 JBJ-111LL JBJ-111LL JBJ-121L JBJ-121L JBJ-131L
LJ(TJ)-35 7.5 JBJ-111LL JBJ-121L JBJ-121L JBJ-131L
LJ(TJ)-50 9 JBJ-122 JBJ-122 JBJ-132
LJ(TJ)-70 10.8 JBJ-122 JBJ-132
LJ(TJ)-95 12.12 JBJ-133
LJ(TJ)-120 14.25
LJ(TJ)-150 15.75
LJ(TJ)-185 17.5
LJ(TJ)-210 18.8
LJ(TJ)-240 20
LJ(TJ)-300 22.4
017 www.spdl.cc
