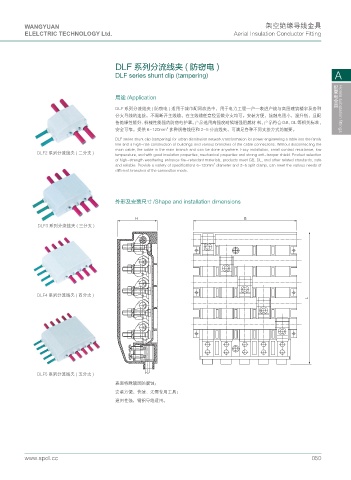

Page 72 - 网源电力科技有限公司

WANGYUAN 架空绝缘导线金具
ELELCTRIC TECHNOLOGY Ltd. Aerial Insulation Conductor Fitting

DLF 系列分流线夹 ( 防窃电 )

DLF series shunt clip (tampering) A

用途 /Application

DLF 系列分流线夹 ( 防窃电 ) 适用于城市配网改造中，用于电力工程一户一表进户线与高层建筑楼宇及各种 配变电金具 Hotels substation fittings
分支导线的连接。不需断开主线缆，在主线缆任意位置做分支均可。安装方便，接触电阻小，温升低，且配
备绝缘性能好、机械性能强的防窃电护罩。产品选用高强度耐候增强阻燃材 料，产品符合 GB、DL 等相关标准，
2
安全可靠。提供 6-120mm 多种规格线径和 2-5 分流线夹，可满足各种不同支接方式的需要。
DLF series shunt clip (tampering) for urban distribution network transformation for power engineering a table into the family
line and a high-rise construction of buildings and various branches of the cable connections. Without disconnecting the
main cable, the cable in the main branch and can be done anywhere. Easy installation, small contact resistance, low
DLF2 系列分流线夹 ( 二分支 )
temperature, and with good insulation properties, mechanical properties and strong anti-tamper shield. Product selection
of high-strength weathering enhance fire-retardant materials, products meet GB, DL, and other related standards, safe
2
and reliable. Provide a variety of specifications 6-120mm diameter and 2-5 split clamp, can meet the various needs of
different branches of the connection mode.

外形及安装尺寸 /Shape and installation dimensions

) #
DLF3 系列分流线夹 ( 三分支 )

DLF4 系列分流线夹 ( 四分支 )
-

DLF5 系列分流线夹 ( 五分支 )
表面特殊镀层防腐蚀；
安装方便、快速、无需专用工具；
通用性强，铜铝导线适用。
