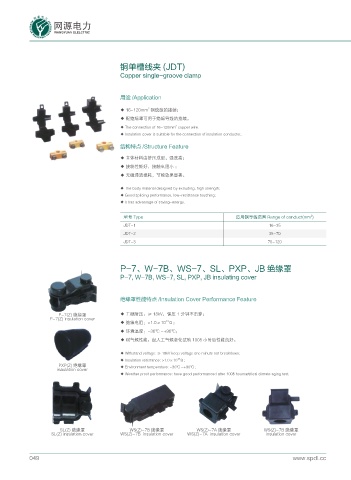

铜单槽线夹 (JDT)

Copper single-groove clamp

用途 /Application

2
◆ 16~120mm 铜绞线的接续；
◆ 配绝缘罩可用于绝缘导线的接续。
◆ The connection of 16~120mm copper wire.
2
◆ Insulation cover is suitable for the connection of insulation conductor.
结构特点 /Structure Feature
◆ 主体材料由挤压成型，强度高；
◆ 接续性能好，接触电阻小 ；
◆ 无磁滞流损耗，节能效果显著。

◆ The body material designed by extruding, high strength;
◆ Good splicing performance, low-resistance touching;
◆ It has advantage of saving-energy.

2
型号 Type 适用铜导线范围 Range of conduct(mm )
JDT-1 16-35
JDT-2 35-70
JDT-3 70-120

P-7、W-7B、WS-7、SL、PXP、JB 绝缘罩
P-7, W-7B, WS-7, SL, PXP, JB insulating cover

绝缘罩性能特点 /Insulation Cover Performance Feature

P-7(Z) 绝缘罩 ◆ 工频耐压：≥ 18kV，保压 1 分钟不击穿；
P-7(Z) insulation cover
◆ 绝缘电阻：>1.0×10 Ω；
14
◆ 环境温度：-30℃ ~+90℃；
◆ 耐气候性能：经人工气候老化试验 1008 小时后性能良好。

◆ Withstand voltage: ≥ 18kV keep voltage one minute not breakdown;
14
◆ Insulation resistance: >1.0×10 Ω;
PXP(Z) 绝缘罩 ◆ Environment temperature: -30℃ ~+90℃ ;
inaulation cover
◆ Weather proof performance: have good performanced after 1008 hoursartifical climate aging test.

SL(Z) 绝缘罩 WS(Z)-7B 绝缘罩 WS(Z)-7A 绝缘罩 WS(Z)-7B 绝缘罩
SL(Z) insulation cover WS(Z)-7B insulation cover WS(Z)-7A insulation cover insulation cover
