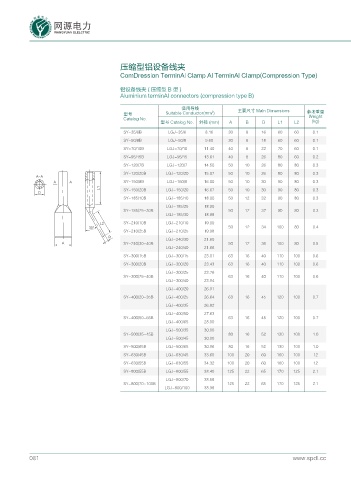

压缩型铝设备线夹

ComDression TerminAl Clamp Al TerminAl CIamp(Compression Type)

铝设备线夹 ( 压缩型 B 型 )
Aluminium terminAI connectors (compression type B)

适用导线 主要尺寸 Main Dimensions
2
型号 Suitable Conductor(mm ) 参考重量
Weight
Catalog No.
型号 Catalog No. 外径 (mm) A B D L1 L2 (kg)
SY-35/6B LGJ-35/6 8.16 30 8 16 60 60 0.1
SY-50/8B LGJ-50/8 9.60 30 8 18 60 60 0.1
SY-70/10B LGJ-70/10 11.40 40 8 22 70 60 0.1
SY-95/15B LGJ-95/15 13.61 40 8 26 80 60 0.2
SY-120/7B LGJ-120/7 14.50 50 10 26 80 80 0.3
SY-120/20B LGJ-120/20 15.07 50 10 26 80 80 0.3
# #
# # SY-150/8B LGJ-150/8 16.00 50 10 30 90 80 0.3
. SY-150/20B LGJ-150/20 16.67 50 10 30 90 80 0.3
&
SY-185/10B LGJ-185/10 18.00 50 12 32 90 80 0.3
LGJ-185/25 18.90
SY-185/25-30B 50 12 32 90 80 0.3
LGJ-185/30 18.88
. SY-210/10B LGJ-210/10 19.00
d 50 12 34 100 80 0.4
SY-210/25B LGJ-210/25 19.98
$ LGJ-240/30 21.60
# SY-240/30~40B 50 12 36 100 80 0.5
LGJ-240/40 21.66
SY-300/15B LGJ-300/15 23.01 63 16 40 110 100 0.6
SY-300/20B LGJ-300/20 23.43 63 16 40 110 100 0.6
LGJ-300/25 23.76
SY-300/25-40B 63 16 40 110 100 0.6
LGJ-300/40 23.94
LGJ-400/20 26.91
SY-400/20-35B LGJ-400/25 26.64 63 16 45 120 100 0.7
LGJ-400/35 26.82
LGJ-400/50 27.63
SY-400/50-65B 63 16 45 120 100 0.7
LGJ-400/65 28.00
LGJ-500/35 30.00
SY-500/35-45B 80 16 52 130 100 1.0
LGJ-500/45 30.00
SY-500/65B LGJ-500/65 30.96 80 16 52 130 100 1.0
SY-630/45B LGJ-630/45 33.60 100 20 60 160 100 12
SY-630/55B LGJ-630/55 34.32 100 20 60 160 100 12
SY-800/55B LGJ-800/55 38.40 125 22 65 170 125 2.1
LGJ-800/70 38.58
SY-800/70~100B 125 22 65 170 125 2.1
LGJ-800/100 38.98
