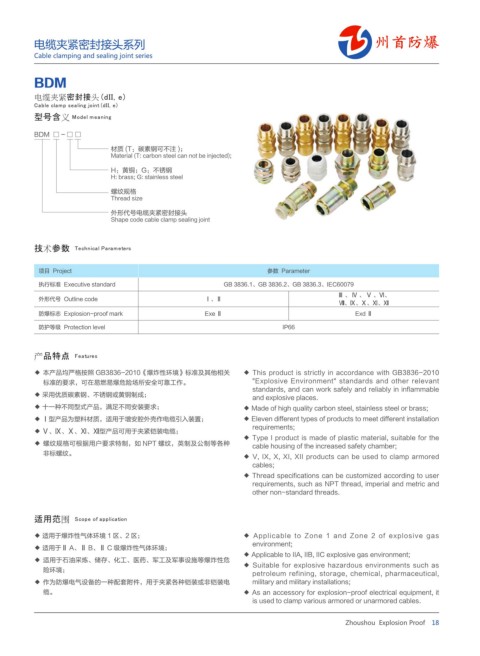

电缆夹紧密封接头系列
Cable clamping and sealing joint series

BDM
׈ভࡃࣅૡٿࢤ๨ ̵ͱ͖͖̹ḤͲ̶ḤḤḤ
͐ͮͯ͹ͲḤͰ͹ͮͺͽḤ΀Ͳͮ͹ͶͻʹḤͷͼͶͻ΁Ḥ̵ͱ͖͖̹ḤͲ̶
྘ݼݣၬ ͚ͼͱͲ͹ḤͺͲͮͻͶͻʹ
BDM □ - □ □

材质 (T：碳素钢可不注 )；
Material (T: carbon steel can not be injected);
H：黄铜；G：不锈钢
H: brass; G: stainless steel

螺纹规格
Thread size
外形代号电缆夹紧密封接头
Shape code cable clamp sealing joint

࠯ඌҕඔḤḤ ͡ͲͰ͵ͻͶͰͮ͹Ḥͮ͝ͿͮͺͲ΁ͲͿ΀

项目 Project 参数 Parameter
执行标准 Executive standard GB 3836.1、GB 3836.2、GB 3836.3、IEC60079
Ⅲ 、 Ⅳ 、 Ⅴ 、Ⅵ、
外形代号 Outline code Ⅰ、Ⅱ
Ⅷ、Ⅸ、Ⅹ、Ⅺ、Ⅻ
防爆标志 Explosion-proof mark Exe Ⅱ Exd Ⅱ
防护等级 Protection level IP66

Ӂ௖หׄḤḤ ͓Ͳͮ΁΂ͿͲ΀
◆ 本产品均严格按照 GB3836-2010《爆炸性环境》标准及其他相关 ◆ This product is strictly in accordance with GB3836-2010
标准的要求，可在易燃易爆危险场所安全可靠工作。 "Explosive Environment" standards and other relevant
standards, and can work safely and reliably in inflammable
◆ 采用优质碳素钢、不锈钢或黄铜制成；
and explosive places.
◆ 十一种不同型式产品，满足不同安装要求； ◆ Made of high quality carbon steel, stainless steel or brass;
◆ Ⅰ型产品为塑料材质，适用于增安腔外壳作电缆引入装置； ◆ Eleven different types of products to meet different installation
requirements;
◆ Ⅴ、Ⅸ、Ⅹ、Ⅺ、Ⅻ型产品可用于夹紧铠装电缆；
◆ Type I product is made of plastic material, suitable for the
◆ 螺纹规格可根据用户要求特制，如 NPT 螺纹，英制及公制等各种
cable housing of the increased safety chamber;
非标螺纹。
◆ V, IX, X, XI, XII products can be used to clamp armored
cables;
◆ Thread specifications can be customized according to user
requirements, such as NPT thread, imperial and metric and
other non-standard threads.

ൡႨٓຶḤḤ ͠ͰͼͽͲḤͼͳḤͮͽͽ͹ͶͰͮ΁Ͷͼͻ

◆ 适用于爆炸性气体环境 1 区、2 区； ◆ Applicable to Zone 1 and Zone 2 of explosive gas
environment;
◆ 适用于Ⅱ A、Ⅱ B、Ⅱ C 级爆炸性气体环境；
◆ Applicable to IIA, IIB, IIC explosive gas environment;
◆ 适用于石油采炼、储存、化工、医药、军工及军事设施等爆炸性危
◆ Suitable for explosive hazardous environments such as
险环境；
petroleum refining, storage, chemical, pharmaceutical,
◆ 作为防爆电气设备的一种配套附件，用于夹紧各种铠装或非铠装电 military and military installations;
缆。 ◆ As an accessory for explosion-proof electrical equipment, it
is used to clamp various armored or unarmored cables.

Zhoushou Explosion Proof 18
