P. 27

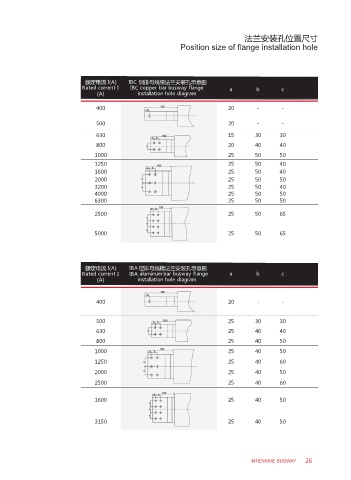

法兰安装孔位置尺寸
Position size of flange installation hole
额定电流 I(A) IBC 铜排母线槽法兰安装孔示意图
Rated current I IBC copper bar busway flange a b c
(A) installation hole diagram
400 20 - -
500 20 - -
630 15 30 30
800 20 40 40
1000 25 50 50
1250 25 50 40
1600 25 50 40
2000 25 50 50
3200 25 50 40
4000 25 50 50
6300 25 50 50
2500 25 50 65
5000 25 50 65
额定电流 I(A) IBA 铝排母线槽法兰安装孔示意图
Rated current I IBA aluminum bar busway flange a b c
(A) installation hole diagram
400 20 - -
500 25 30 30
630 25 40 40
800 25 40 50
1000 25 40 50
1250 25 40 60
2000 25 40 50
2500 25 40 60
1600 25 40 50
3150 25 40 50
INTENSIVE BUSWAY 26
