设备线夹
Equipment Clamp

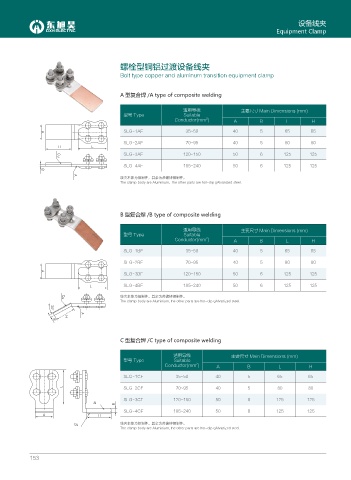

螺栓型铜铝过渡设备线夹

Bolt type copper and aluminum transition equipment clamp

A 型复合焊 /A type of composite welding

适用导线 主要尺寸 Main Dimensions (mm)
型号 Type Suitable
2
Conductor(mm ) A B L H
SLG-1AF 35~50 40 5 65 65
#
SLG-2AF 70~95 40 5 80 80
* .
SLG-3AF 120~150 50 6 125 125
%W
SLG-4AF 185~240 50 6 125 125
$
线夹本体为铝制件，其余为热镀锌钢制件。
#N
The clamp body are Aluminium，the other parts are hot-dip gAlvanized steel.

B 型复合焊 /B type of composite welding

适用导线 主要尺寸 Main Dimensions (mm)
型号 Type Suitable
2
Conductor(mm ) A B L H
SLG-1BF 35~50 40 5 65 65

SLG-2BF 70~95 40 5 80 80
SLG-3BF 120~150 50 6 125 125
#
. SLG-4BF 185~240 50 6 125 125
线夹本体为铝制件，其余为热镀锌钢制件。
The clamp body are Aluminium, the other parts are hot-dip gAlvanized steel.
%W
d
#N
*
$
C 型复合焊 /C type of composite welding

适用导线 主要尺寸 Main Dimensions (mm)
型号 Type Suitable
2
Conductor(mm ) A B L H
SLG-1CF 35~50 40 5 65 65

. SLG-2CF 70~95 40 5 80 80
SLG-3CF 120~150 50 6 125 125
#N
$
SLG-4CF 185~240 50 6 125 125
# *
%W 线夹本体为铝制件，其余为热镀锌钢制件。
The clamp body are Aluminium, the other parts are hot-dip gAlvanized steel.

153
