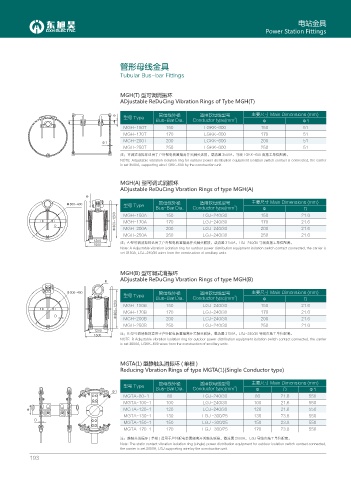

Page 212 - 四川东旭昊电气设备有限公司

电站金具
Power Station Fittings

管形母线金具

Tubular Bus-bar Fittings

MGH(T) 型可调消振环
ADjustable ReDuCing Vibration Rings of Tybe MGH(T)

 型号 Type 管母线外径 适用软母线型号 主要尺寸 Main Dimensions (mm)
Bus-Bar Dia. Conductor type(mm ) Φ Φ1
2
MGH-150T 150 LGKK-600 150 51
MGH-170T 170 LGKK-600 170 51
MGH-200T 200 LGKK-600 200 51

MGH-250T 250 LGKK-600 250 51
注：可调式消振环适用于户外配电装置隔离开关触头连接，载流置 3500A，导线 LGKK-600 由施工单位配套。
NOTE: Adjustable vibration isolation ring for outdoor power distribution equipment isolation switch contact is connected, the carrier
is set 3500A, supporting wire LGKK-600 by the construction unit.

MGH(A) 型可调式消振环
ADjustable ReDuCing Vbration Rings of type MGH(A)

 ` 型号 Type 管母线外径 适用软母线型号 主要尺寸 Main Dimensions (mm)
2
Bus-Bar Dia. Conductor type(mm ) Φ D
 ` MGH-150A 150 LGJ-240/30 150 21.6
21.6
LGJ-240/30
170
MGH-170A
170
& MGH-200A 200 LGJ-240/30 200 21.6
MGH-250A 250 LGJ-240/30 250 21.6
注：A 型可调消振环适用于户外配电装置隔离开关触头联接，载流置 3150A，LGJ-240/30 导线由施工单位配套。

Note: A Adjustable vibration isolation ring for outdoor power distribution equipment isolation switch contact connected, the carrier is
set 3150A, LGJ-240/30 wires from the construction of ancillary units.
MGH(B) 型可调式消振环
ADjustable ReDuCing Vbration Rings of type MGH(B)

 ` 管母线外径 适用软母线型号 主要尺寸 Main Dimensions (mm)
型号 Type 2
Bus-Bar Dia. Conductor type(mm ) Φ D
 ` MGH-150B 150 LGJ-240/30 150 21.6
LGJ-240/30
21.6
170
MGH-170B
170
& MGH-200B 200 LGJ-240/30 200 21.6
MGH-250B 250 LGJ-240/30 250 21.6

注：B 型可调消振环适用于户外配电装置隔离开关触头联接，载流置 3150A，LGJ-240/30 导线由施工单位配套。
NOTE: B Adjustable vibration isolation ring for outdoor power distribution equipment isolation switch contact connected, the carrier
is set 3500A, LGKK-600 wires from the construction of ancillary units.
MGTA(1) 型静触头消振环 ( 单根 )
Reducing Vbration Rings of type MGTA(1)(Single Conductor type)

管母线外径 适用软母线型号 主要尺寸 Main Dimensions (mm)
型号 Type Bus-Bar Dia. Conductor type(mm )
2
 Φ D Φ1
MGTA-80-1 80 LGJ-240/30 80 21.6 550
MGTA-100-1 100 LGJ-240/30 100 21.6 550
 MGTA-120-1 120 LGJ-240/30 120 21.6 550
MGTA-130-1 130 LGJ -300/25 130 23.8 550
&
MGTA-150-1 150 LGJ -300/25 150 23.8 550
MGTA-170-1 170 LGJ -300/25 170 23.8 550
注：静触头消振环 ( 单根 ) 适用于户外配电装置隔离开关触头联接，载流置 2000A， LGJ 导线由施工单位配套。
Note: The static contact vibration isolation ring (single) power distribution equipment for outdoor isolation switch contact connected,
the carrier is set 2000A, LGJ supporting wire by the construction unit.
