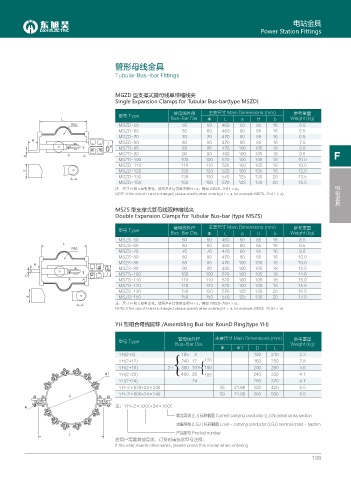

电站金具
                                                                                           Power Station Fittings





                                         管形母线金具

                                         Tubular Bus-bar Fittings


                                         MGZD 型支撑式管母线单伸缩线夹
                                         Single Expansion Clamps for Tubular Bus-bar(type MSZD)

                                                             管母线外径       主要尺寸 Main Dimensions (mm)    参考重量
                                          型号 Type
                      .                                     Bus-Bar Dia.  Φ   L     a    H     b     Weight (kg)
                         4                MSZD-50               50      50   460   50    85    16       6.0
                                          MSZD-60               60      60   460   80    85    16       6.5
                                          MSZD-70               70      70   470   80    85    16       6.5
            *
                                          MSZD-80               80      80   470   80    85    16       7.5
                                          MSZD-85              85      85   470   100   105   18       9.0
          D             #     #           MSZD-90               90      90   490   100   105   18       9.5         F
                                          MSZD-100             100      100  520   100   105   18       10.0
                                          MSZD-110             110      110  520   100   105   18       10.0
          C                               MSZD-120             120      120  520   100   105   18       12.0
                                          MSZD-130             130      130  570   125   130   20       13.5
                         # #
                                          MSZD-150             150      150  570   125   130   20       15.5         电站金具
                                         注:尺寸 H 和 a 如有变化,请用户在订货时注明 H×a,例如 :MSZD-70(H ×a)。
                                         NOTE: If the size of H and a changed, please specify when ordering H × a, for example: MSZD-70 (H × a).
                                         MSZS 型支撑式管母线双伸缩线夹
                                         Double Expansion Clamps for Tubular Bus-bar (type MSZS)
                                                             管母线外径       主要尺寸 Main Dimensions (mm)    参考重量
                                          型号 Type
                                                            Bus-Bar Dia.  Φ   L     a    H     b     Weight (kg)
                                          MSZS-50               50      50   460   50    85    16       8.5
                       .                  MSZS-60               60      60   460   80    85    16       9.5
                          4
                                          MSZS-70               70      70   470   80    85    16       9.6
                                          MSZS-80               80      80   470   80    85    16       10.0
                                          MSZS-85               85      85   470   100   105   18       10.8
             *
                                          MSZS-90               90      90   490   100   105   18       12.5
                                       
          D                               MSZS-100             100      100  520   100   105   18       14.6
                         #   #            MSZS-110             110      110  520   100   105   18       15.0
                                          MSZS-120             120      120  520   100   105   18       15.5
                                          MSZS-130             130      130  570   125   130   20       16.5
           C                              MSZS-150             150      150  570   125   130   20       17.0
                                         注:尺寸 H 和 a 如有变化,请用户在订货时注明 H×a,例如 :MSZS-70(H ×a)。
                           # #
                                         NOTE: If the size of H and a changed, please specify when ordering H × a, for example: MSZS-70 (H × a).
                                         YH 型组合母线圆环 /Assembling Bus-bar RounD Ring(type YH)

                                                              管母线外径        主要尺寸 Main Dimensions (mm)  参考重量
                                          型号 Type
                                                             Bus-Bar Dia.                            Weight (kg)
                                                                             Φ    Φ1     D     L
                                          YH(2+8)              185     8                120   210       2.3
                                                                      {
                                          YH(2+12)          {  240   12  120            160   250       2.8
                                          YH(2+16)         2×  300   16× 150            200   290       3.6
                                     µ    YH(2+20)             400   20  185            240   330       4.1
                                          YH(2+24)                       24             280   370       4.7
                                          YH-2×630+24×240                    35   21.66  320  420       6.5
                                          YH-2×800+24×240                    39   21.66  360  500       8.5
                         &
                                        注:YH-2×XXX+24×XXX
                                                              载流导线 (LJ) 标称截面 Current carrying conductor (LJ) Nominal cross section
                                                              承重导线 (LGJ ) 标称截面 Load - carrying conductor (LGJ) nominal cross - section
                         .                                    产品型号 Product number
                                         若用户需要其他导线,订货时请按此型号注明。
                                         If the user needs other wires, please press this model when ordering
