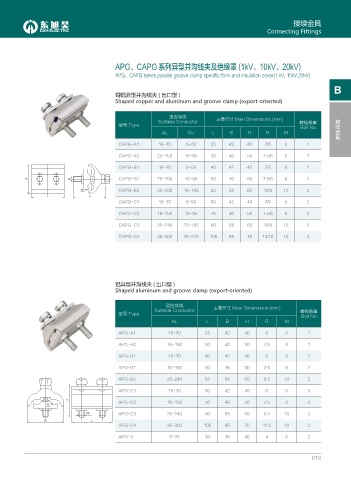

接续金具
Connecting Fittings

APG、CAPG 系列异型并沟线夹及绝缘罩 (1kV、10kV、20kV)

APG、CAPG series parallel groove clamp specific form and insulation cover(1 kV, 10kV,20kV)
B
铜铝异型并沟线夹 ( 出口型 )
Shaped copper and aluminum and groove clamp (export-oriented)

适应导线 主要尺寸 Main Dimensions (mm) 接续金具
Suitable Conductor 螺栓数量
型号 Type
Bolt No.
AL Cu L B H R M
CAPG-A1 16~70 6~50 25 42 40 7/5 8 1

CAPG-A2 25~150 10~95 30 46 50 7.5/6 8 1

CAPG-B1 16~70 6~50 40 42 45 7/5 8 2
$ / CAPG-B2 25~150 10~95 50 46 50 7.5/6 8 2
4 CAPG-B3 35~200 16~185 62 58 60 10/9 10 2
. *
CAPG-C1 16~70 6~50 60 42 45 7/5 8 3
CAPG-C2 16~150 10~95 70 46 50 7.5/6 8 3

CAPG-C3 35~240 25~185 90 58 60 10/9 10 3
CAPG-C4 35~300 35~240 105 65 70 13/10 10 3

铝异型并沟线夹 ( 出口型 )
Shaped aluminum and groove clamp (export-oriented)

适应导线
Suitable Conductor 主要尺寸 Main Dimensions (mm) 螺栓数量
型号 Type
Bolt No.
AL L B H R M
APG-A1 16~70 25 42 40 6 8 1

APG-A2 16~150 30 46 50 7.5 8 1
APG-B1 16~70 40 42 45 6 8 2
APG-B2 16~150 50 46 50 7.5 8 2

APG-B3 25~240 63 58 60 9.5 10 2

APG-C1 16~70 60 42 45 6 8 3
* APG-C2 16~150 70 46 50 7.5 8 3
4
/ APG-C3 25~240 90 58 60 9.5 10 3
$ .
APG-C4 35~300 105 65 70 11.5 10 3
APG-X 6~35 30 36 40 4 6 2

016
