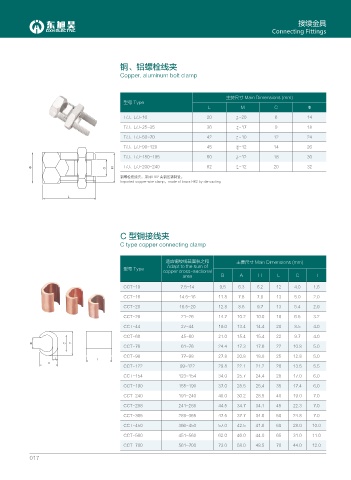

Page 36 - 四川东旭昊电气设备有限公司

接续金具
Connecting Fittings

铜、铝螺栓线夹

Copper, aluminum bolt clamp

主要尺寸 Main Dimensions (mm)
型号 Type
L M C Φ
T/J、L/J-16 20 1" -20 6 14
2
T/J、L/J-25~35 36 11" -17 9 18
16
T/J、L/J-50~70 42 7" -10 12 24
8
T/J、L/J-90~120 45 15" -12 14 26
16
T/J、L/J-150~185 60 1" -12 18 30
8
 % / T/J、L/J-200~240 62 3" 16 -12 20 32
铜螺栓接线夹，采用 H62 黄铜压铸制造。
Imported copper wire clamp，made of brass H62 by die casting

.

C 型铜接线夹
C type copper connecting clamp

适应铜绞线截面积之和 主要尺寸 Main Dimensions (mm)
Adapt to the sum of
型号 Type
copper cross-sectional
area B A H L C T
CCT-10 7.5~14 9.5 6.3 6.2 12 4.0 1.6
CCT-16 14.5~16 11.8 7.8 7.8 13 5.0 2.0
CCT-20 16.5~20 12.8 8.6 9.7 13 5.4 2.9

CCT-26 21~26 14.7 10.2 10.0 16 6.5 3.2
CCT-44 27~44 19.0 13.4 14.4 20 8.5 4.0
CCT-60 45~60 21.0 15.4 15.4 22 9.7 4.0
 % /
CCT-76 61~76 24.4 17.3 17.6 22 10.8 5.0
CCT-98 77~98 27.8 20.8 18.8 25 12.8 5.0
6 .
*
CCT-122 99~122 29.8 22.1 21.2 26 13.5 5.5
CCT-154 123~154 34.0 25.7 24.4 28 17.0 6.0
CCT-190 155~190 37.0 28.5 25.4 35 17.4 6.0
CCT-240 191~240 40.0 30.2 28.5 40 19.0 7.0

CCT-288 241~288 44.5 34.7 34.1 45 22.3 7.0
CCT-365 289~365 47.5 37.7 34.0 50 24.8 7.0
CCT-450 366~450 57.0 42.5 41.0 60 28.0 10.0
CCT-560 451~560 62.0 46.0 44.0 65 31.0 11.0
CCT-700 561~700 73.0 58.0 48.5 70 44.0 12.0

017
