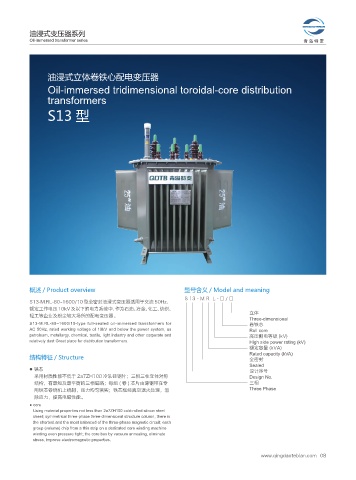

油浸式立体卷铁心配电变压器

Oil-immersed tridimensional toroidal-core distribution
transformers

S13 型

概述 / Product overview 型号含义 / Model and meaning

S 13 - M R L - □ / □
S13-M.RL-80~1600/10 型全密封油浸式变压器适用于交流 50Hz，
额定工作电压10kV及以下的电力系统中，作为石油、冶金、化工、纺织、
轻工等企业及粉尘较大场所的配电变压器。 立体
Three-dimensional
S13-M.RL-80~1600/10-type full-sealed oil-immersed transformers for 卷铁芯
AC 50Hz, rated working voltage of 10kV and below the power system, as Roll core
petroleum, metallurgy, chemical, textile, light industry and other corporate and 高压侧电等级 (kV)
relatively dust Great place for distribution transformers. High side power rating (kV)
额定容量 (kVA)
结构特征 / Structure Rated capacity (kVA)
全密封
Sealed
● 铁芯 设计序号
采用材质性能不低于 2a7ZH100 冷轧硅钢片；三相三柱立体对称 Design No.
结构，有最短及最平衡的三相磁路；每组 ( 卷 ) 芯片由薄钢带在专 三相
用铁芯卷绕机上绕制，压力均匀紧实；铁芯框经真空退火处理，消 Three Phase
除应力，提高电磁性能。
● core
Using material properties not less than 2a7ZH100 cold-rolled silicon steel
sheet; symmetrical three-phase three-dimensional structure column, there is
the shortest and the most balanced of the three-phase magnetic circuit; each
group (volume) chip from a thin strip on a dedicated core winding machine
winding even pressure tight; the core box by vacuum annealing, eliminate
stress, improve electromagnetic properties.
