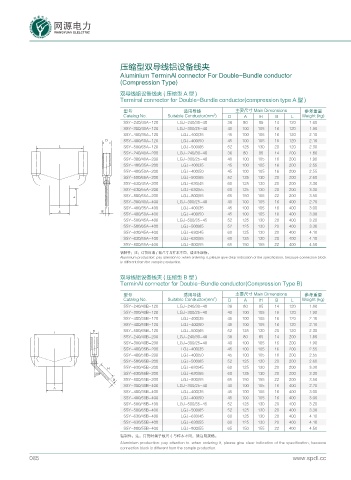

Page 107 - 网源电力科技有限公司

压缩型双导线铝设备线夹

Aluminium TerminAl connector For Double-Bundle conductor
(Compression Type)

双导线铝设备线夹 ( 压缩型 A 型 )
Terminal connector for Double-Bundle conductor(compression type A 型 )
型号 适用导线 主要尺寸 Main Dimensions 参考重量
2
Catalog No. Suitable Conductor(mm ) D A H B L Weight (kg)
SSY-240/40A-120 LGJ-240/30-40 36 80 85 14 120 1.60
SSY-300/40A-120 LGJ-300/25-40 40 100 105 16 120 1.90
SSY-400/35A-120 LGJ-400/35 45 100 105 16 120 2.10
& SSY-400/50A-120 LGJ-400/50 45 100 105 16 120 2.10
. SSY-500/65A-120 LGJ-500/65 52 125 130 20 120 2.30
SSY-240/40A-200 LGJ-240/30-40 36 80 85 14 200 1.80
SSY-300/40A-200 LGJ-300/25-40 40 100 105 16 200 1.90
SSY-400/35A-200 LGJ-400/35 45 100 105 16 200 2.55
SSY-400/50A-200 LGJ-400/50 45 100 105 16 200 2.55
SSY-500/65A-200 LGJ-500/65 52 125 130 20 200 2.60
SSY-630/45A-200 LGJ-630/45 60 125 130 20 200 3.30
SSY-630/55A-200 LGJ-630/55 60 125 130 20 200 3.30
SSY-800/55A-200 LGJ-800/55 65 150 155 22 200 3.50
*
SSY-300/40A-400 LGJ-300/25-40 40 100 105 16 400 2.70
SSY-400/35A-400 LGJ-400/35 45 100 105 16 400 3.00
# $
SSY-400/50A-400 LGJ-400/50 45 100 105 16 400 3.00
SSY-500/45A-400 LGJ-500/35-45 52 125 130 20 400 3.20
SSY-500/65A-400 LGJ-500/65 52 125 130 20 400 3.30
SSY-630/45A-400 LGJ-630/45 60 125 130 20 400 4.10
SSY-630/55A-400 LGJ-630/55 60 125 130 20 400 4.10
SSY-800/55A-400 LGJ-800/55 65 150 155 22 400 4.50
铝制件：注：订货时端子板尺寸与样本不同，请注明规格。
Aluminium production: pay attention to :when ordering it, please give clear indication of the specification, because connection block
is different from the sample production.

双导线铝设备线夹 ( 压缩型 B 型 )
TerminAI connector for Double-Bundle conductor(Compression Type B)

型号 适用导线 主要尺寸 Main Dimensions 参考重量
2
Catalog No. Suitable Conductor(mm ) D A H B L Weight (kg)
SSY-240/40B-120 LGJ-240/30-40 36 80 85 14 120 1.60
SSY-300/40B-120 LGJ-300/25-40 40 100 105 16 120 1.90
SSY-400/35B-120 LGJ-400/35 45 100 105 16 120 2.10
SSY-400/50B-120 LGJ-400/50 45 100 105 16 120 2.10
& SSY-500/65B-120 LGJ-500/65 52 125 130 20 120 2.30
.
SSY-240/40B-200 LGJ-240/30-40 36 80 85 14 200 1.80
SSY-300/40B-200 LGJ-300/25-40 40 100 105 16 200 1.90
SSY-400/35B-200 LGJ-400/35 45 100 105 16 200 2.55
SSY-400/50B-200 LGJ-400/50 45 100 105 16 200 2.55
SSY-500/65B-200 LGJ-500/65 52 125 130 20 200 2.60
* SSY-630/45B-200 LGJ-630/45 60 125 130 20 200 3.30
d SSY-630/55B-200 LGJ-630/55 60 125 130 20 200 3.30
$ SSY-800/55B-200 LGJ-800/55 65 150 155 22 200 3.50
SSY-300/40B-400 LGJ-300/25-40 40 100 105 16 400 2.70
#
SSY-400/35B-400 LGJ-400/35 45 100 105 16 400 3.00
SSY-400/50B-400 LGJ-400/50 45 100 105 16 400 3.00
SSY-500/45B-400 LGJ-500/35-45 52 125 130 20 400 3.20
SSY-500/65B-400 LGJ-500/65 52 125 130 20 400 3.30
SSY-630/45B-400 LGJ-630/45 60 125 130 20 400 4.10
SSY-630/55B-400 LGJ-630/55 60 125 130 20 400 4.10
SSY-800/55B-400 LGJ-800/55 65 150 155 22 400 4.50
铝制件：注：订货时端子板尺寸与样本不同，请注明规格。
Aluminium production: pay attention to :when ordering it, please give clear indication of the specification, because
connection block is different from the sample production.
085 www.spdl.cc
