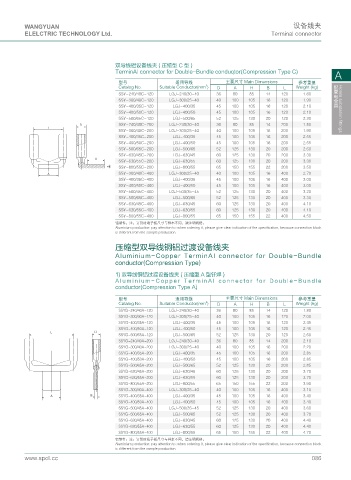

WANGYUAN 设备线夹
ELELCTRIC TECHNOLOGY Ltd. Terminal connector

双导线铝设备线夹 ( 压缩型 C 型 )
TerminAI connector for Double-Bundle conduqtor(Compression Type C)
A
型号 适用导线 主要尺寸 Main Dimensions 参考重量
2
Catalog No. Suitable Conductor(mm ) D A H B L Weight (kg)
SSY-240/40C-120 LGJ-240/30-40 36 80 85 14 120 1.60
SSY-300/40C-120 LGJ-300/25-40 40 100 105 16 120 1.90
SSY-400/35C-120 LGJ-400/35 45 100 105 16 120 2.10 配变电金具 Hotels substation fittings
SSY-400/50C-120 LGJ-400/50 45 100 105 16 120 2.10
SSY-500/65C-120 LGJ-500/65 52 125 130 20 120 2.30
& SSY-240/40C-200 LGJ-240/30-40 36 80 85 14 200 1.80
.
SSY-300/40C-200 LGJ-300/25-40 40 100 105 16 200 1.90
SSY-400/35C-200 LGJ-400/35 45 100 105 16 200 2.55
SSY-400/50C-200 LGJ-400/50 45 100 105 16 200 2.55
SSY-500/65C-200 LGJ-500/65 52 125 130 20 200 2.60
SSY-630/45C-200 LGJ-630/45 60 125 130 20 200 3.30
*
SSY-630/55C-200 LGJ-630/55 60 125 130 20 200 3.30
$ SSY-800/55C-200 LGJ-800/55 65 150 155 22 200 3.50
# SSY-300/40C-400 LGJ-300/25-40 40 100 105 16 400 2.70
SSY-400/35C-400 LGJ-400/35 45 100 105 16 400 3.00
SSY-400/50C-400 LGJ-400/50 45 100 105 16 400 3.00
SSY-500/45C-400 LGJ-500/35-45 52 125 130 20 400 3.20
SSY-500/65C-400 LGJ-500/65 52 125 130 20 400 3.30
SSY-630/45C-400 LGJ-630/45 60 125 130 20 400 4.10
SSY-630/55C-400 LGJ-630/55 60 125 130 20 400 4.10
SSY-800/55C-400 LGJ-800/55 65 150 155 22 400 4.50
铝制件：注：订货时端子板尺寸与样本不同，请注明规格。
Aluminium production: pay attention to :when ordering it, please give clear indication of the specification, because connection block
is different from the sample production.
压缩型双导线铜铝过渡设备线夹
Aluminium-Copper TerminAI connector for Double-Bundle
conductor(Compression Type)
1) 双导线铜铝过渡设备线夹 ( 压缩型 A 型钎焊 )
A lum in ium - Co ppe r Te rm in A I co n n e cto r fo r Do uble - Bun dle
conductor(Compression Type A)

型号 适用导线 主要尺寸 Main Dimensions 参考重量
2
Catalog No. Suitable Conductor(mm ) D A H B L Weight (kg)
SSYG-240/40A-120 LGJ-240/30-40 36 80 85 14 120 1.80
SSYG-300/40A-120 LGJ-300/25-40 40 100 105 16 120 2.00
SSYG-400/35A-120 LGJ-400/35 45 100 105 16 120 2.45
SSYG-400/50A-120 LGJ-400/50 45 100 105 16 120 2.45
. &
SSYG-500/65A-120 LGJ-500/65 52 125 130 20 120 2.60
SSYG-240/40A-200 LGJ-240/30-40 36 80 85 14 200 2.10
SSYG-300/40A-200 LGJ-300/25-40 40 100 105 16 200 2.20
SSYG-400/35A-200 LGJ-400/35 45 100 105 16 200 2.85
SSYG-400/50A-200 LGJ-400/50 45 100 105 16 200 2.85
SSYG-500/65A-200 LGJ-500/65 52 125 130 20 200 2.85
SSYG-630/45A-200 LGJ-630/45 60 125 130 20 200 3.70
SSYG-630/55A-200 LGJ-630/55 60 125 130 20 200 3.70
SSYG-800/55A-200 LGJ-800/55 65 150 155 22 200 3.90
SSYG-300/40A-400 LGJ-300/25-40 40 100 105 16 400 3.10
# $ SSYG-400/35A-400 LGJ-400/35 45 100 105 16 400 3.40
SSYG-400/50A-400 LGJ-400/50 45 100 105 16 400 3.40
SSYG-500/45A-400 LGJ-500/35-45 52 125 130 20 400 3.60
SSYG-500/65A-400 LGJ-500/65 52 125 130 20 400 3.70
SSYG-630/45A-400 LGJ-630/45 60 125 130 20 400 4.40
SSYG-630/55A-400 LGJ-630/55 60 125 130 20 400 4.40
SSYG-800/55A-400 LGJ-800/55 65 150 155 22 400 4.70
铝制件：注：订货时端子板尺寸与样本不同，请注明规格。
Aluminium production: pay attention to :when ordering it, please give clear indication of the specification, because connection block
is different from the sample production.
