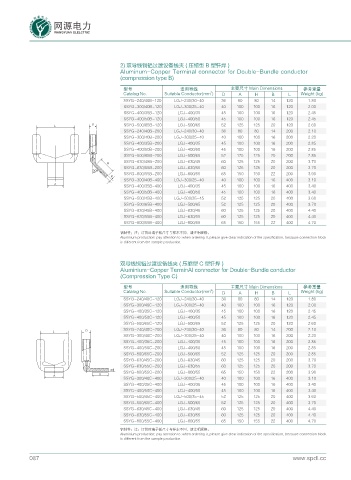

2) 双导线铜铝过渡设备线夹 ( 压缩型 B 型钎焊 )
Aluminum-Copper Terminal connector for Double-Bundle conductor
(compression type B)

型号 适用导线 主要尺寸 Main Dimensions 参考重量
2
Catalog No. Suitable Conductor(mm ) D A H B L Weight (kg)
SSYG-240/40B-120 LGJ-240/30-40 36 80 80 14 120 1.80
SSYG-300/40B-120 LGJ-300/25-40 40 100 100 16 120 2.00
SSYG-400/35B-120 LGJ-400/35 45 100 100 16 120 2.45
SSYG-400/50B-120 LGJ-400/50 45 100 100 16 120 2.45
& SSYG-500/65B-120 LGJ-500/65 52 125 125 20 120 2.60
.
SSYG-240/40B-200 LGJ-240/30-40 36 80 80 14 200 2.10
SSYG-300/40B-200 LGJ-300/25-40 40 100 100 16 200 2.20
SSYG-400/35B-200 LGJ-400/35 45 100 100 16 200 2.85
SSYG-400/50B-200 LGJ-400/50 45 100 100 16 200 2.85
SSYG-500/65B-200 LGJ-500/65 52 125 125 20 200 2.85
SSYG-630/45B-200 LGJ-630/45 60 125 125 20 200 3.70
*
SSYG-630/55B-200 LGJ-630/55 60 125 125 20 200 3.70
d
SSYG-800/55B-200 LGJ-800/55 65 150 150 22 200 3.90
$
SSYG-300/40B-400 LGJ-300/25-40 40 100 100 16 400 3.10
#
SSYG-400/35B-400 LGJ-400/35 45 100 100 16 400 3.40
SSYG-400/50B-400 LGJ-400/50 45 100 100 16 400 3.40
SSYG-500/45B-400 LGJ-500/35-45 52 125 125 20 400 3.60
SSYG-500/65B-400 LGJ-500/65 52 125 125 20 400 3.70
SSYG-630/45B-400 LGJ-630/45 60 125 125 20 400 4.40
SSYG-630/55B-400 LGJ-630/55 60 125 125 20 400 4.40
SSYG-800/55B-400 LGJ-800/55 65 150 155 22 400 4.70
铝制件：注：订货时端子板尺寸与样本不同，请注明规格。
Aluminium production: pay attention to :when ordering it, please give clear indication of the specification, because connection block
is different from the sample production.

双导线铜铝过渡设备线夹 ( 压缩型 C 型钎焊 )
Aluminium-Copper TerminAI connector for Double-Bundle conductor
(Compression Type C)
型号 适用导线 主要尺寸 Main Dimensions 参考重量
2
Catalog No. Suitable Conductor(mm ) D A H B L Weight (kg)
SSYG-240/40C-120 LGJ-240/30-40 36 80 80 14 120 1.80
SSYG-300/40C-120 LGJ-300/25-40 40 100 100 16 120 2.00
SSYG-400/35C-120 LGJ-400/35 45 100 100 16 120 2.45
SSYG-400/50C-120 LGJ-400/50 45 100 100 16 120 2.45
SSYG-500/65C-120 LGJ-500/65 52 125 125 20 120 2.60
SSYG-240/40C-200 LGJ-240/30-40 36 80 80 14 200 2.10
. &
SSYG-300/40C-200 LGJ-300/25-40 40 100 100 16 200 2.20
SSYG-400/35C-200 LGJ-400/35 45 100 100 16 200 2.85
SSYG-400/50C-200 LGJ-400/50 45 100 100 16 200 2.85
SSYG-500/65C-200 LGJ-500/65 52 125 125 20 200 2.85
SSYG-630/45C-200 LGJ-630/45 60 125 125 20 200 3.70
SSYG-630/55C-200 LGJ-630/55 60 125 125 20 200 3.70
$ SSYG-800/55C-200 LGJ-800/55 65 150 150 22 200 3.90
# *
SSYG-300/40C-400 LGJ-300/25-40 40 100 100 16 400 3.10
SSYG-400/35C-400 LGJ-400/35 45 100 100 16 400 3.40
SSYG-400/50C-400 LGJ-400/50 45 100 100 16 400 3.40
SSYG-500/45C-400 LGJ-500/35-45 52 125 125 20 400 3.60
SSYG-500/65C-400 LGJ-500/65 52 125 125 20 400 3.70
SSYG-630/45C-400 LGJ-630/45 60 125 125 20 400 4.40
SSYG-630/55C-400 LGJ-630/55 60 125 125 20 400 4.40
SSYG-800/55C-400 LGJ-800/55 65 150 155 22 400 4.70
铝制件：注：订货时端子板尺寸与样本不同，请注明规格。
Aluminium production: pay attention to :when ordering it, please give clear indication of the specification, because connection block
is different from the sample production.

087 www.spdl.cc
