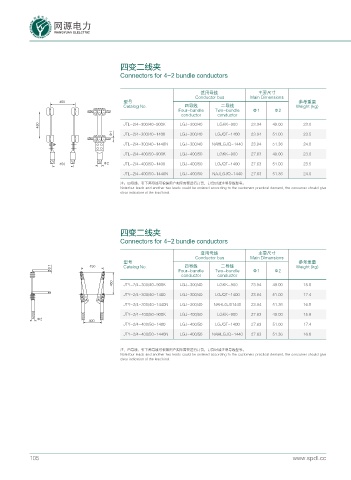

Page 127 - 网源电力科技有限公司

四变二线夹

Connectors for 4-2 bundle conductors

适用母线 主要尺寸
Conductor bus Main Dimensions
型号 参考重量
Catalog No. 四导线 二导线 Weight (kg)
Four-bundle Two-bundle Φ1 Φ2
conductor conductor
JTL-2/4-300/40-900K LGJ-300/40 LGKK-900 23.94 49.00 23.0
 JTL-2/4-300/40-1400 LGJ-300/40 LGJQT-1400 23.94 51.00 23.5
JTL-2/4-300/40-1440N LGJ-300/40 NAHLGJQ-1440 23.94 51.36 24.0

JTL-2/4-400/50-900K LGJ-400/50 LGKK-900 27.63 49.00 23.0
 JTL-2/4-400/50-1400 LGJ-400/50 LGJQT-1400 27.63 51.00 23.5
JTL-2/4-400/50-1440N LGJ-400/50 NAJLGJQ-1440 27.63 51.36 24.0
注：四导线、引下两导线可根据用户实际需要进行订货，订货时请注明导线型号。
Note:four leads and another two leads could be ordered according to the customers practical demand, the consumer should give
clear indication of the lead kind.

四变二线夹
Connectors for 4-2 bundle conductors

适用母线 主要尺寸
Conductor bus Main Dimensions
型号 参考重量
 Catalog No. 四导线 二导线 Weight (kg)
Four-bundle Two-bundle Φ1 Φ2
conductor conductor
JTY-2/4-300/40-900K LGJ-300/40 LGKK-900 23.94 49.00 15.8

JTY-2/4-300/40-1400 LGJ-300/40 LGJQT-1400 23.94 51.00 17.4
JTY-2/4-300/40-1440N LGJ-300/40 NAHLGJ01440 23.94 51.36 16.8
JTY-2/4-400/50-900K LGJ-400/50 LGKK-900 27.63 49.00 15.8


JTY-2/4-400/50-1400 LGJ-400/50 LGJQT-1400 27.63 51.00 17.4
JTY-2/4-400/50-1440N LGJ-400/50 NAHLGJQ-1440 27.63 51.36 16.8

注：四导线、引下两导线可根据用户实际需要进行订货，订货时请注明导线型号。
Note:four leads and another two leads could be ordered according to the customers practical demand, the consumer should give
clear indication of the lead kind.
