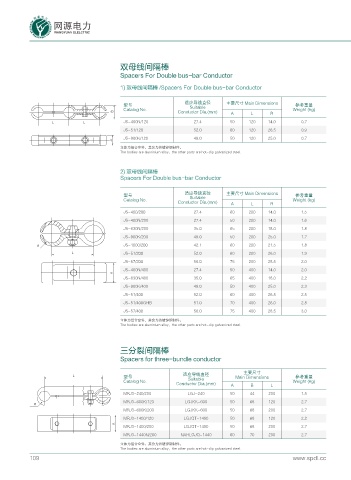

Page 131 - 网源电力科技有限公司

双母线间隔棒

Spacers For Double bus-bar Conductor
1) 双母线间隔棒 /Spacers For Double bus-bar Conductor

适应导线直径 主要尺寸 Main Dimensions
型号 Suitable 参考重量
Catalog No. Weight (kg)
$ Conductor Dia.(mm) A L R
. . JS-400N/120 27.4 50 120 14.0 0.7
JS-51/120 52.0 60 120 26.5 0.9
JS-900K/120 49.0 50 120 25.0 0.7
#
主体为铝合金件，其余为热镀锌钢制件。
The bodies are aluminium alloy，the other parts are hot-dip galvanized steel.

2) 双母线间隔棒
Spacers For Double bus-bar Conductor

适应导线直径 主要尺寸 Main Dimensions
型号 Suitable 参考重量
Catalog No. Weight (kg)
Conductor Dia.(mm) A L R
JS-400/200 27.4 60 200 14.0 1.5
JS-400N/200 27.4 50 200 14.0 1.6
JS-630N/200 35.0 65 200 18.0 1.8
JS-900K/200 49.0 50 200 25.0 1.7
4 JS-1000/200 42.1 60 200 21.5 1.8
. JS-51/200 52.0 60 200 26.0 1.9
JS-57/200 56.0 75 200 28.5 2.0
JS-400N/400 27.4 50 400 14.0 2.0
#
JS-630N/400 35.0 65 400 18.0 2.2
JS-900K/400 49.0 50 400 25.0 2.3
JS-51/400 52.0 60 400 26.5 2.5
JS-51/400GHB 51.0 70 400 26.0 2.8
JS-57/400 56.0 75 400 28.5 3.0
主体为铝合金件，其余为热镀锌钢制件。
The bodies are aluminium alloy，the other parts are hot-dip galvanized steel.

三分裂间隔棒
Spacers for three-bundle conductor

适应导线直径 主要尺寸
. 型号 Main Dimensions 参考重量
Catalog No. Suitable Weight (kg)
Conductor Dia.(mm) A B L
MRJ3-240/200 LGJ-240 50 44 200 1.5
MRJ3-600K/120 LGJKK-600 50 68 120 2.7
4
MRJ3-600K/200 LGJKK-600 50 68 200 2.7
MRJ3-1400/120 LGJQT-1400 50 68 120 2.2
#
MRJ3-1400/200 LGJQT-1400 50 68 200 2.7
MRJ3-1440N/200 NAHLGJQ-1440 60 70 200 2.7
主体为铝合金件，其余为热镀锌钢制件。
The bodies are aluminium alloy，the other parts are hot-dip galvanized steel.
