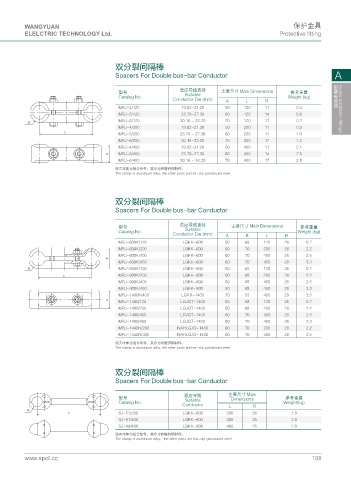

Page 130 - 网源电力科技有限公司

WANGYUAN 保护金具
ELELCTRIC TECHNOLOGY Ltd. Protective fitting

双分裂间隔棒

Spacers For Double bus-bar Conductor A

适应导线直径
型号 Suitable 主要尺寸 Main Dimensions 参考重量
Catalog No. Weight (kg)
Conductor Dia.(mm) A L R
MRJ-4/120 19.02-21.28 50 120 11 0.4 配变电金具 Hotels substation fittings
MRJ-5/120 23.70-27.36 60 120 14 0.6
MRJ-6/120 30.16 - 33.20 70 120 17 0.7
4
MRJ-4/200 19.02-21.28 50 200 11 0.9
.
MRJ-5/200 23.70 ~ 27.36 60 200 14 1.0
MRJ-6/200 30.16-33.20 70 200 17 1.2
MRJ-4/400 19.02-21.28 50 400 11 2.1
MRJ-5/400 23.70-27.36 60 400 14 2.5
#
MRJ-6/400 30.16 - 33.20 70 400 17 2.8
线夹本体为铝合金件，其余为热镀锌钢制件。
The clamp is aluminium alloy, the other parts are hot-dip galvanized steel.

双分裂间隔棒
Spacers For Double bus-bar Conductor

适应导线直径
型号 Suitable 主要尺寸 Main Dimensions 参考重量
Catalog No. Weight (kg)
Conductor Dia.(mm) A B L R
MRJ-600K/120 LGKK-600 50 68 120 26 0.7
MRJ-600K/200 LGKK-600 60 70 200 26 2.2
MRJ-600K/400 LGKK-600 60 70 400 26 2.5
$
MRJ-600K/450 LGKK-600 60 70 450 26 3.3
4 MRJ-900K/120 LGKK-900 50 65 120 26 0.7
. MRJ-900K/200 LGKK-900 50 68 200 26 2.2
MRJ-900K/400 LGKK-900 50 68 400 26 2.5
MRJ-900K/450 LGKK-900 50 68 450 26 3.3
MRJ-1400K/400 LGKK-1400 70 83 400 29 3.5
#
MRJ-1400/120 LGJQT-1400 50 68 120 26 0.7
MRJ-1400/200 LGJQT-1400 50 68 200 26 2.2
MRJ-1400/400 LGJQT-1400 60 70 400 26 2.5
MRJ-1400/450 LGJQT-1400 60 70 450 26 3.3
MRJ-1440N/200 NAHLGJQ-1400 60 70 200 26 2.2
MRJ-1440N/400 NAHLGJQ-1400 60 70 400 26 2.5
线夹本体为铝合金件，其余为热镀锌钢制件。
The clamp is aluminium alloy, the other parts are hot-dip galvanized steel.

双分裂间隔棒
Spacers For Double bus-bar Conductor

适应导线 主要尺寸 Main
型号 Suitable Dimensions 参考重量
Catalog No. Weight(kg)
Conductor L R
4
. SJ-51/200 LGKK-600 200 26 1.9
SJ-51/400 LGKK-600 400 26 2.0
SJ-49/400 LGKK-900 400 25 2.0
线夹本体为铝合金件，其余为热镀锌钢制件。
The clamp is aluminium alloy，the other parts are hot-dip galvanized steel.

www.spdl.cc 108
