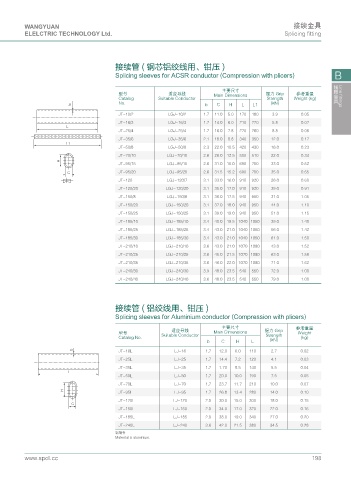

WANGYUAN 接续金具
ELELCTRIC TECHNOLOGY Ltd. Splicing fitting

接续管 ( 钢芯铝绞线用、钳压 )

Splicing sleeves for ACSR conductor (Compression with plicers) B

主要尺寸
型号 适应导线 Main Dimensions 握力 Grip 参考重量 线路金具 Line fittings
Catalog Suitable Conductor Strength Weight (kg)
No. (kN)
D b C H L L1
JT-10/2 LGJ-10/2 1.7 11.0 5.0 170 180 3.9 0.05
JT-16/3 LGJ-16/3 1.7 14.0 6.0 210 220 5.8 0.07
.
JT-25/4 LGJ-25/4 1.7 16.0 7.8 270 280 8.8 0.08
JT-35/6 LGJ-35/6 2.1 18.0 8.8 340 350 12.0 0.17
.
JT-50/8 LGJ-50/8 2.3 22.0 10.5 420 430 16.0 0.23
JT-70/10 LGJ-70/10 2.6 26.0 12.5 500 510 22.0 0.34
*
JT-95/15 LGJ-95/15 2.6 31.0 15.0 690 700 33.0 0.52
% JT-95/20 LGJ-95/20 2.6 31.5 15.2 690 700 35.0 0.55
JT-120 LGJ-120/7 3.1 33.0 16.0 910 920 26.0 0.60
JT-120/20 LGJ-120/20 3.1 35.0 17.0 910 920 39.0 0.91
JT-150/8 LGJ-150/8 3.1 36.0 17.5 940 950 31.0 1.05
JT-150/20 LGJ-150/20 3.1 37.0 18.0 940 950 44.0 1.10
JT-150/25 LGJ-150/25 3.1 39.0 19.0 940 950 51.0 1.15
JT-185/10 LGJ-185/10 3.4 40.0 19.5 1040 1050 39.0 1.40
JT-185/25 LGJ-185/25 3.4 43.0 21.0 1040 1050 56.0 1.42
JT-185/30 LGJ-185/30 3.4 43.0 21.0 1040 1050 61.0 1.50
JT-210/10 LGJ-210/10 3.6 43.0 21.0 1070 1080 43.0 1.52
JT-210/25 LGJ-210/25 3.6 45.0 21.5 1070 1080 63.0 1.58
JT-210/35 LGJ-210/35 3.6 46.0 22.0 1070 1080 71.0 1.62
JT-240/30 LGJ-240/30 3.9 48.0 23.5 540 550 72.0 1.00
JT-240/40 LGJ-240/40 3.6 48.0 23.5 540 550 79.0 1.00

接续管 ( 铝绞线用、钳压 )
Splicing sleeves for Aluminium conductor (Compression with plicers)

主要尺寸 参考重量
适应导线 握力 Grip
型号 Suitable Conductor Main Dimensions Strength Weight
Catalog No. (kg)
b C H L (kN)
D JT-16L LJ-16 1.7 12.0 6.0 110 2.7 0.02
JT-25L LJ-25 1.7 14.4 7.2 120 4.1 0.03
JT-35L LJ-35 1.7 1.70 8.5 140 5.5 0.04
.
JT-50L LJ-50 1.7 20.0 10.0 190 7.5 0.05
JT-70L LJ-70 1.7 23.7 11.7 210 10.0 0.07
* JT-95L LJ-95 1.7 26.8 13.4 280 14.0 0.10
JT-120L LJ-120 2.0 30.0 15.0 300 18.0 0.15
%
JT-150L LJ-150 2.0 34.0 17.0 320 22.0 0.16
JT-185L LJ-185 2.0 38.0 19.0 340 27.0 0.20
JT-240L LJ-240 3.6 42.0 21.5 380 34.5 0.28
铝制件
Materrial is aluminium.
