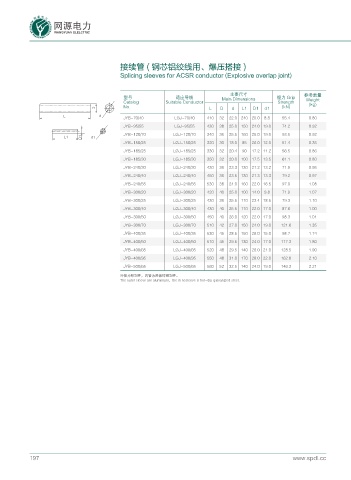

接续管 ( 钢芯铝绞线用、爆压搭接 )

Splicing sleeves for ACSR conductor (Explosive overlap joint)

主要尺寸 参考重量
型号 适应导线 Main Dimensions 握力 Grip Weight
Catalog Suitable Conductor Strength (kg)
No. (kN)
& L D d L1 D1 d1
. F JYB-70/40 LGJ-70/40 410 32 22.0 240 20.0 8.8 55.4 0.80
JYB-95/55 LGJ-95/55 430 38 25.0 150 24.0 19.0 74.2 0.92
JYB-120/70 LGJ-120/70 340 36 25.5 160 25.0 19.0 93.5 0.92
. & F
JYB-150/25 LGJ-150/25 320 30 18.0 85 26.0 12.0 51.4 0.35
JYB-185/25 LGJ-185/25 330 32 20.4 90 17.2 11.2 56.5 0.86
JYB-185/30 LGJ-185/30 350 32 20.0 100 17.5 13.5 61.1 0.80
JYB-240/30 LGJ-240/30 430 36 23.3 130 21.2 13.2 71.9 0.95
JYB-240/40 LGJ-240/40 450 36 23.5 130 21.3 13.3 79.2 0.97
JYB-240/55 LGJ-240/55 530 38 24.0 160 22.0 16.5 97.0 1.08
JYB-300/20 LGJ-300/20 420 40 25.0 100 14.0 9.8 71.9 1.07
JYB-300/25 LGJ-300/25 430 36 25.5 110 23.4 18.5 79.3 1.10
JYB-300/40 LGJ-300/40 430 40 25.5 110 22.0 17.0 87.6 1.00
JYB-300/50 LGJ-300/50 450 40 26.0 120 22.0 17.0 98.3 1.01
JYB-300/70 LGJ-300/70 510 42 27.0 150 24.0 19.0 121.6 1.35
JYB-400/35 LGJ-400/35 530 45 28.5 150 26.0 15.0 98.7 1.74
JYB-400/50 LGJ-400/50 510 45 29.5 130 24.0 17.0 117.3 1.80
JYB-400/65 LGJ-400/65 520 48 29.5 140 26.0 21.0 128.5 1.90
JYB-400/95 LGJ-400/95 550 48 31.0 170 28.0 22.0 162.8 2.10
JYB-500/65 LGJ-500/65 560 52 32.5 140 24.0 19.0 146.3 2.21
外管为铝制件，内管为热镀锌钢制件。
The outer sleeve are aluminium，the in nesleeve is hot-dip galvanized steel.
