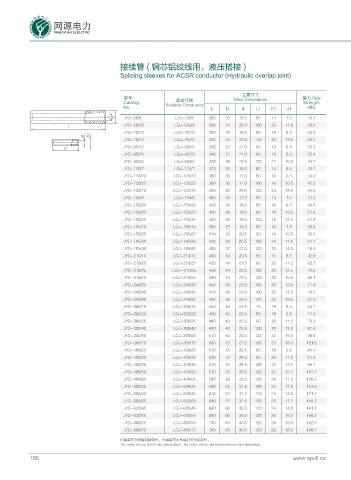

接续管 ( 钢芯铝绞线用、液压搭接 )

Splicing sleeves for ACSR conductor (Hydraulic overlap joint)

主要尺寸
型号 适应导线 Main Dimensions 握力 Grip
Catalog Suitable Conductor Strength
No. L D d L1 D1 d1 (kN)
F & JYD-50/8 LGJ-50/8 280 30 18.0 80 14 7.0 16.1
. JYD-50/30 LGJ-50/30 300 34 22.0 100 20 11.6 40.5
JYD-70/10 LGJ-70/10 300 30 18.0 80 16 8.3 22.3
F &
JYD-70/40 LGJ-70/40 330 34 22.0 110 20 13.6 55.4
. JYD-95/15 LGJ-95/15 320 32 21.0 80 18 8.4 33.3
JYD-95/20 LGJ-95/20 340 32 21.0 80 18 9.3 35.4
JYD-95/55 LGJ-95/55 420 36 24.0 120 22 16.0 74.2
JYD-120/7 LGJ-120/7 320 30 16.0 80 14 6.5 26.2
JYD-120/20 LGJ-120/20 380 30 17.0 80 16 9.3 39.0
JYD-120/25 LGJ-120/25 380 30 17.0 100 16 10.5 45.5
JYD-120/70 LGJ-120/70 450 40 26.0 130 24 18.0 93.5
JYD-150/8 LGJ-150/8 360 30 17.5 80 14 7.0 31.3
JYD-150/20 LGJ-150/20 400 30 18.0 80 16 9.3 44.3
JYD-150/25 LGJ-150/25 400 30 19.0 90 18 10.5 51.4
JYD-150/35 LGJ-150/35 440 30 19.0 120 18 12.5 61.8
JYD-185/10 LGJ-185/10 380 32 19.5 80 16 7.8 38.9
JYD-185/25 LGJ-185/25 410 32 20.5 90 18 10.5 56.5
JYD-185/30 LGJ-185/30 420 32 20.5 100 18 11.6 61.1
JYD-185/45 LGJ-185/45 480 32 21.0 120 20 14.0 76.2
JYD-210/10 LGJ-210/10 400 34 20.5 80 16 8.3 42.9
JYD-210/25 LGJ-210/25 420 34 21.5 90 20 11.2 62.7
JYD-210/35 LGJ—210/35 450 34 22.0 100 20 12.5 70.6
JYD-210/50 LGJ-210/50 480 34 23.5 120 22 15.0 86.3
JYD-240/30 LGJ-240/30 450 36 23.0 100 20 12.0 71.9
JYD-240/40 LGJ-240/40 470 36 23.0 100 20 13.3 79.2
JYD-240/55 LGJ-240/55 490 36 24.0 120 22 16.0 97.0
JYD-300/15 LGJ-300/15 440 40 24.5 70 18 8.4 64.7
JYD-300/20 LGJ-300/20 450 40 25.0 80 18 9.8 71.9
JYD-300/25 LGJ-300/25 480 40 25.5 90 20 11.2 79.3
JYD-300/40 LGJ-300/40 490 40 25.5 100 20 13.3 87.6
JYD-300/50 LGJ-300/50 510 40 26.0 120 22 15.0 98.3
JYD-300/70 LGJ-300/70 560 42 27.0 130 24 18.0 121.6
JYD-400/20 LGJ-400/20 510 45 28.5 80 18 9.8 84.4
JYD-400/25 LGJ-400/25 520 45 28.5 90 20 11.2 91.2
JYD-400/35 LGJ-400/35 540 45 28.5 100 22 12.5 98.7
JYD-400/50 LGJ-400/50 570 45 29.5 120 24 15.4 117.3
JYD-400/65 LGJ-400/65 580 48 29.5 130 26 17.2 128.5
JYD-500/35 LGJ-500/35 580 52 31.5 100 22 12.5 113.6
JYD-500/45 LGJ-500/45 610 52 31.5 110 24 14.0 121.7
JYD-500/65 LGJ-500/65 640 52 32.5 130 26 17.2 146.3
JYD-630/45 LGJ-630/45 650 60 35.5 110 24 14.0 141.3
JYD-630/55 LGJ-630/55 680 60 36.0 120 26 16.0 156.2
JYD-800/55 LGJ-800/55 730 65 40.0 120 26 16.0 182.0
JYD-800/70 LGJ-800/70 760 65 40.5 130 26 18.0 196.7
内接续管为热镀锌钢制件，外接续管及两端衬管为铝制件。
The inner sleeve is hot-dip galvanized，the outer sleeve and lining sleeves are aluminium.
