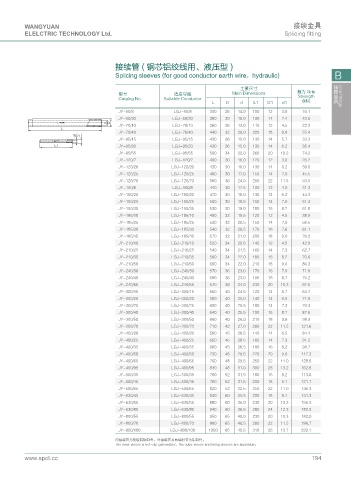

WANGYUAN 接续金具
ELELCTRIC TECHNOLOGY Ltd. Splicing fitting

接续管 ( 钢芯铝绞线用、液压型 )

Splicing sleeves (for good conductor earth wire，hydraulic) B
主要尺寸
型号 适应导线 Main Dimensions 握力 Grip 线路金具 Line fittings
Strength
Catalog No. Suitable Conductor
L D d L1 D1 d1 (kN)
JY-50/8 LGJ-50/8 300 26 14.0 100 12 3.8 16.1
JY-50/30 LGJ-50/30 380 30 16.0 190 14 7.4 40.5
ףഗ׽ތ؜ F &
JY-70/10 LGJ-70/10 360 26 13.0 110 12 4.5 22.3
.
JY-70/40 LGJ-70/40 440 32 20.0 220 18 8.8 55.4
F &
JY-95/15 LGJ-95/15 430 26 15.0 130 14 5.7 33.3
ףഗ׽ތ؜
. JY-95/20 LGJ-95/20 430 26 15.0 130 14 6.2 35.4
JY-95/55 LGJ-95/55 500 34 22.0 260 20 10.2 74.2
JY-120/7 LGJ-120/7 400 30 16.0 120 12 3.6 26.2
JY-120/20 LGJ-120/20 430 30 16.0 130 14 6.2 39.0
JY-120/25 LGJ-120/25 490 30 17.0 150 14 7.0 45.5
JY-120/70 LGJ-120/70 580 36 24.0 290 22 11.5 93.5
JY-150/8 LGJ-150/8 440 30 17.5 100 12 4.0 31.3
JY-150/20 LGJ-150/20 470 30 18.0 130 14 6.2 44.3
JY-150/25 LGJ-150/25 500 30 18.5 150 14 7.0 51.4
JY-150/35 LGJ-150/35 530 30 19.0 180 16 8.2 61.8
JY-185/10 LGJ-185/10 490 32 19.5 120 12 4.5 38.9
JY-185/25 LGJ-185/25 520 32 20.5 150 14 7.0 56.5
JY-185/30 LGJ-185/30 540 32 20.5 170 16 7.6 61.1
JY-185/45 LGJ-185/45 570 32 21.0 200 18 9.0 76.2
JY-210/10 LGJ-210/10 520 34 20.5 140 12 4.5 42.9
JY-210/25 LGJ-210/25 540 34 21.5 160 14 7.3 62.7
JY-210/35 LGJ-210/35 560 34 22.0 180 16 8.2 70.6
JY-210/50 LGJ-210/50 600 34 22.0 210 18 9.6 86.3
JY-240/30 LGJ-240/30 570 36 23.0 170 16 7.9 71.9
JY-240/40 LGJ-240/40 590 36 23.0 190 16 8.7 79.2
JY-240/55 LGJ-240/55 640 36 24.0 230 20 10.3 97.0
JY-300/15 LGJ-300/15 560 40 24.5 120 14 5.7 64.7
JY-300/20 LGJ-300/20 580 40 25.0 140 14 6.5 71.9
JY-300/25 LGJ-300/25 600 40 25.5 160 14 7.3 79.3
JY-300/40 LGJ-300/40 640 40 25.5 190 16 8.7 87.6
JY-300/50 LGJ-300/50 660 40 26.0 210 18 9.6 98.3
JY-300/70 LGJ-300/70 710 42 27.0 260 22 11.5 121.6
JY-400/20 LGJ-400/20 580 45 28.5 140 14 6.5 84.4
JY-400/25 LGJ-400/25 660 45 28.5 160 14 7.3 91.2
JY-400/35 LGJ-400/35 680 45 28.5 180 16 8.2 98.7
JY-400/50 LGJ-400/50 730 45 29.5 220 20 9.9 117.3
JY-400/65 LGJ-400/65 760 48 29.5 250 22 11.0 128.5
JY-400/95 LGJ-400/95 830 48 31.0 300 26 13.2 162.8
JY-500/35 LGJ-500/35 760 52 31.5 180 16 8.2 113.6
JY-500/45 LGJ-500/45 760 52 31.5 200 18 9.1 121.7
JY-500/65 LGJ-500/65 820 52 32.5 250 22 11.0 146.3
JY-630/45 LGJ-630/45 840 60 35.5 200 18 9.1 141.3
JY-630/55 LGJ-630/55 880 60 36.0 230 20 10.3 156.2
JY-630/80 LGJ-630/80 940 60 36.5 280 24 12.3 183.3
JY-800/55 LGJ-800/55 950 65 40.0 230 20 10.3 182.0
JY-800/70 LGJ-800/70 980 65 40.5 260 22 11.5 196.7
JY-800/100 LGJ-800/100 1050 65 40.5 310 26 13.7 229.1
内接续管为热镀锌钢制件，外接续管及两端衬管为铝制件。
The inner sleeve is hot-dip galvanized，the outer sleeve and lining sleeves are aluminium.

www.spdl.cc 194
