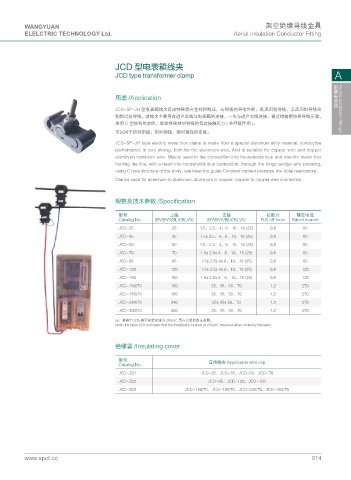

Page 36 - 网源电力科技有限公司

WANGYUAN 架空绝缘导线金具
ELELCTRIC TECHNOLOGY Ltd. Aerial Insulation Conductor Fitting

JCD 型电表箱线夹

JCD type transformer clamp A

用途 /Application

JCD-SP-JH 型电表箱线夹是由特殊铝合金材料制成，有很强的导电性能，既适用铝导线，又适用铜导线和 配变电金具 Hotels substation fittings
铜铝过渡导线。该线夹主要用在进户总线与电表箱的连接，一头与进户总线连接，通过铰链楔块将导线压紧，
采用 C 型结构的本体，能始终保持对导线的恒定接触压力 ( 共呼吸作用 )。
可以用于铝对铝线，铝对铜线，铜对铜线的连接。
JCD-SP-JH type electric meter box clamp is made from a special aluminum alloy material, conductive
performance is very strong, both for the aluminum wire, And is suitable for copper wire and copper
aluminum transition wire. Mainly used in the connection into households bus and electric meter box
holding the line, with a head Into households bus connection, through the hinge wedge wire pressing,
using C type structure of the body, can keep the guide Constant contact pressure line (total respiration).
Can be used for aluminum to aluminum, aluminum to copper, copper to copper wire connection.

规格及技木参数 /Specification

型号 主线 支线 拉断力 额定电流
Catalog No. (BV/BVV/BLV/BLVV) (BV/BVV/BLV/BLVV) PUll off force Rated current
JCD-25 25 1.5、2.5、4、6、10、16 (25) 0.8 80
JCD-35 35 1.5s 2.5、4、6、10、16 (25) 0.8 80
JCD-50 50 1.5、2.5、4、6、10、16 (25) 0.8 80
JCD-70 70 1.5s 2.5s 4、6、10、16 (25) 0.8 80
JCD-95 95 1.5s 2.5s 4s 6、10、16 (25) 0.8 80
JCD-120 120 1.5s 2.5s 4s 6、10、16 (25) 0.8 120
JCD-150 150 1.5s 2.5s 4、6、10、16 (25) 0.8 120
JCD-150/70 150 25、35、50、70 1.2 270
JCD-185/70 185 25、35、50、70 1.2 270
JCD-240/70 240 25s 35s 50、70 1.2 270
JCD-300/70 300 25、35、50、70 1.2 270
2
注：表格中 (25) 表示安装支线为 25mm , 需在订货时备注说明。
Note: the table (25) indicates that the installation branch of 25mm , required when ordering Remarks.
2

绝缘罩 /Insulating cover

型号 适用线夹 Applicable wire clip
Catalog No.
JCD-Z01 JCD-25、JCD-35、JCD-50、JCD-70
JCD-Z02 JCD-95、JCD-120、JCD-150
JCD-Z03 JCD-150/70、JCD-185/70、JCD-240/70、JCD-300/70
