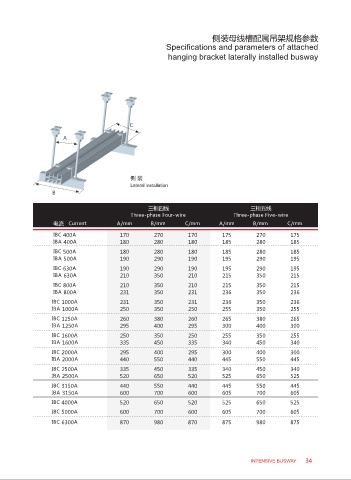

侧装母线槽配属吊架规格参数
Specifications and parameters of attached
hanging bracket laterally installed busway
侧 装
Lateral installation
三相四线 三相五线
Three-phase Four-wire Three-phase Five-wire
电流 Current A/mm B/mm C/mm A/mm B/mm C/mm
IBC 400A 170 270 170 175 270 175
IBA 400A 180 280 180 185 280 185
IBC 500A 180 280 180 185 280 185
IBA 500A 190 290 190 195 290 195
IBC 630A 190 290 190 195 290 195
IBA 630A 210 350 210 215 350 215
IBC 800A 210 350 210 215 350 215
IBA 800A 231 350 231 236 350 236
IBC 1000A 231 350 231 236 350 236
IBA 1000A 250 350 250 255 350 255
IBC 1250A 260 380 260 265 380 265
IBA 1250A 295 400 295 300 400 300
IBC 1600A 250 350 250 255 350 255
IBA 1600A 335 450 335 340 450 340
IBC 2000A 295 400 295 300 400 300
IBA 2000A 440 550 440 445 550 445
IBC 2500A 335 450 335 340 450 340
IBA 2500A 520 650 520 525 650 525
IBC 3150A 440 550 440 445 550 445
IBA 3150A 600 700 600 605 700 605
IBC 4000A 520 650 520 525 650 525
IBC 5000A 600 700 600 605 700 605
IBC 6300A 870 980 870 875 980 875
