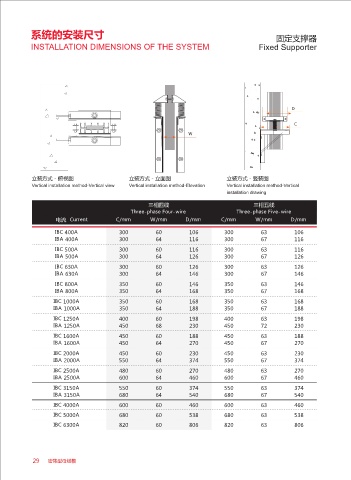

系统的安装尺寸 固定支撑器

INSTALLATION DIMENSIONS OF THE SYSTEM Fixed Supporter

立装方式－俯视图 立装方式－立面图 立装方式－竖装图
Vertical installation method-Vertical view Vertical installation method-Elevation Vertical installation method-Vertical
installation drawing
三相四线 三相五线
Three-phase Four-wire Three-phase Five-wire
电流 Current C/mm W/mm D/mm C/mm W/mm D/mm

IBC 400A 300 60 106 300 63 106
IBA 400A 300 64 116 300 67 116
IBC 500A 300 60 116 300 63 116
IBA 500A 300 64 126 300 67 126

IBC 630A 300 60 126 300 63 126
IBA 630A 300 64 146 300 67 146
IBC 800A 350 60 146 350 63 146
IBA 800A 350 64 168 350 67 168
IBC 1000A 350 60 168 350 63 168
IBA 1000A 350 64 188 350 67 188
IBC 1250A 400 60 198 400 63 198
IBA 1250A 450 68 230 450 72 230

IBC 1600A 450 60 188 450 63 188
IBA 1600A 450 64 270 450 67 270
IBC 2000A 450 60 230 450 63 230
IBA 2000A 550 64 374 550 67 374
IBC 2500A 480 60 270 480 63 270
IBA 2500A 600 64 460 600 67 460

IBC 3150A 550 60 374 550 63 374
IBA 3150A 680 64 540 680 67 540
IBC 4000A 600 60 460 600 63 460
IBC 5000A 680 60 538 680 63 538
IBC 6300A 820 60 806 820 63 806

29 密集型母线槽
