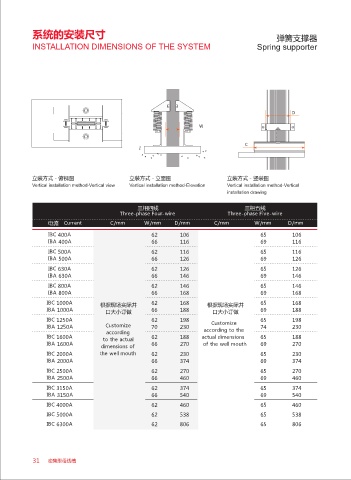

系统的安装尺寸 弹簧支撑器

INSTALLATION DIMENSIONS OF THE SYSTEM Spring supporter

立装方式－俯视图 立装方式－立面图 立装方式－竖装图
Vertical installation method-Vertical view Vertical installation method-Elevation Vertical installation method-Vertical
installation drawing

三相四线 三相五线
Three-phase Four-wire Three-phase Five-wire
电流 Current C/mm W/mm D/mm C/mm W/mm D/mm

IBC 400A 62 106 65 106
IBA 400A 66 116 69 116
IBC 500A 62 116 65 116
IBA 500A 66 126 69 126
IBC 630A 62 126 65 126
IBA 630A 66 146 69 146

IBC 800A 62 146 65 146
IBA 800A 66 168 69 168
IBC 1000A 根据现场实际井 62 168 根据现场实际井 65 168
IBA 1000A 口大小订做 66 188 口大小订做 69 188
IBC 1250A 62 198 Customize 65 198
IBA 1250A Customize 70 230 74 230
according according to the
IBC 1600A to the actual 62 188 actual dimensions 65 188
IBA 1600A 66 270 of the well mouth 69 270
dimensions of
IBC 2000A the well mouth 62 230 65 230
IBA 2000A 66 374 69 374
IBC 2500A 62 270 65 270
IBA 2500A 66 460 69 460

IBC 3150A 62 374 65 374
IBA 3150A 66 540 69 540
IBC 4000A 62 460 65 460
IBC 5000A 62 538 65 538
IBC 6300A 62 806 65 806

31 密集型母线槽
